AHI

Stainless Steel Rectangular Flush Door Pull, AHI SIG776-630

SKU: AHI-SIG776-630
$47.99 $60.00Save $12.01/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

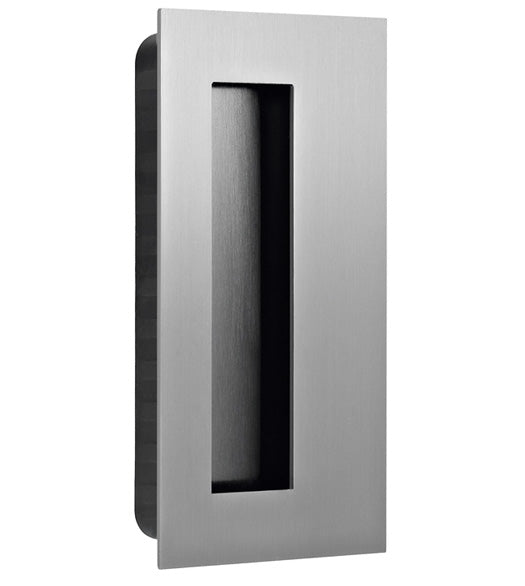

The AHI SIG776-630 is a contemporary flush door pull, available in Satin Stainless Steel, designed for recessed applications including pocket, sliding, and cabinet doors.

The pull features a black high impact plastic housing situated between the 1/16" thick stainless steel front and back plates. Installation can be achieved by pressure mounting into the door or thru-bolting from the back side.

Also available: Stainless Steel Flush Pull with Flush Cover, Modern Square Flush Door Pull, Contemporary Rectangular Flush Door Pull and Extra Long Flush Door Pull.

Stainless Steel Flush Pull Dimensions
Material & Finish
Material Stainless Steel
Other
Total Height 5-5/16" (135 mm)
Total Width 2-3/4" (70 mm)
Total Depth 3/4" (19 mm)
Door Cutout Depth 21/32" (17 mm)
Projection 1/16" (2 mm)
Finger Opening Height 3-15/16" (100 mm)
Finger Opening Width 1" (25 mm)
Door Cutout Opening Height 4-15/16" (125 mm)
Door Cutout Opening Width 1-13/16" (46 mm)
Lip 5/16" (8 mm)

Questions about this product? Call 954-776-5340 or send us a message below.
