AHI

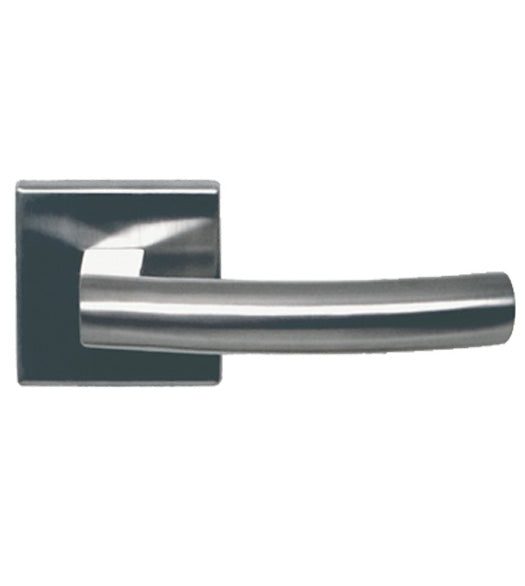

Stainless Steel Futuragrip Leverset with Square Rose, AHI SIG128-204

SKU: AHI-SIG128-204
$66.99 $95.00Save $28.01/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer? Volume pricing + dedicated account rep available


Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The AHI SIG128-204 Stainless Steel Futuragrip Leverset features a solid 304 grade stainless steel construction and a concealed screw mounted square rose. This contemporary leverset is designed for ADA compliant installation on pre-drilled doors.

The unit accommodates door thicknesses from 1-3/8" to 2" and supports both 2-3/8" and 2-3/4" backsets. Available in Satin or Polished Stainless Steel finishes.

AHI SIG128 Square Rose Stainless Steel Door Lever Specifications
Dimensions & Fit
Door Thickness adjustable for 1-3/8" to 2"
Backset 2-3/8" or 2-3/4"
Material & Finish
Material 304 Stainless Steel
Other
Lever Length 5-1/4" (133 mm)
Lever Cross Section Height 7/8" (23 mm)
Lever Cross Section Width 9/16" (14 mm)
Lever Projection 2-7/16" (63 mm)
Spindle Width 0.31" (8 mm)
Rose Length 2-1/2" (64 mm) squared

Questions about this product? Call 954-776-5340 or send us a message below.

* Required fields

Stainless Steel Futuragrip Leverset with Square Rose, AHI SIG128-204 $66.99
