Satin Stainless Steel 5 Inch Privacy Set, Omnia 7012/L

SKU: OMN-7012/L
$433.60 $542.00Save $108.40/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

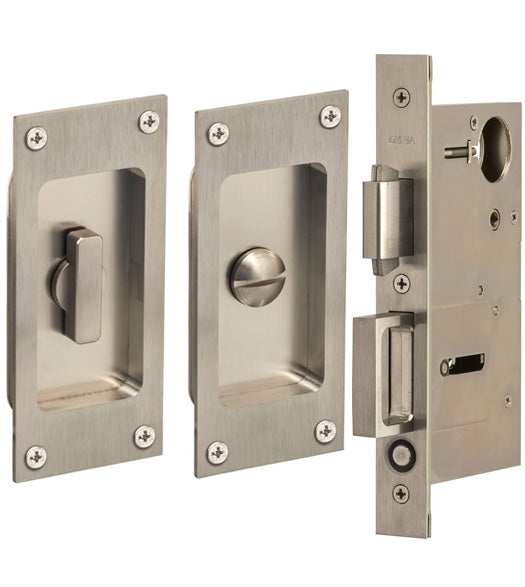

The Omnia 7012/L is a Satin Stainless Steel Privacy Mortise Pocket Door Hardware set. The package includes 2 privacy flush pulls, a mortise box with retractable finger pull, the mortise faceplate, strike, and mounting hardware.

This hardware is designed for 1-3/4" thick doors and features a 2-1/2" backset. The privacy lock allows the door to be secured while permitting emergency access from the exterior via the flush pull.

Also Available Matching: Dummy Set

Dimensions & Fit
Backset 2-1/2"
Door Thickness 1-3/4"
Material & Finish
Material Stainless Steel
Other
Plate Height 5"
Plate Width 2-1/4"
Plate Cut-Out Height 3-3/16"
Plate Cut-Out Width 1-5/8"
Plate Projection 3/32"
Overall Depth 1/2"
Mortise Box Height 6-3/4"
Mortise Box Width 3/4"
Mortise Box Face Plate Height 8"
Mortise Box Face Plate Width 1"
Latch 1/2" thick x 1-1/4" high x 1" throw
Finger Pull 1/2" thick x 2" high x 1-1/4" throw
