Global

Pull Trim with Rim Cylinder for Panic Device, Global ED-PP05501-RC-AL

SKU: GLO-ED-PP05501-RC-AL
$34.04 $42.55Save $8.51/ unit
Out of Stock — Notify me
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

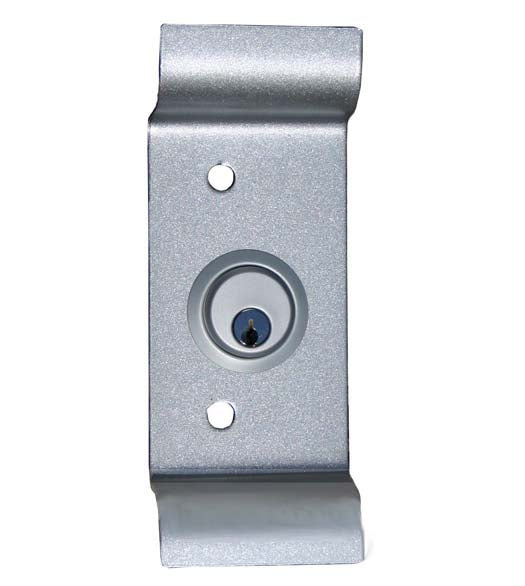

The Global ED-PP05501-RC-AL Pull Trim with Rim Lock Cylinder is designed as a Night Latch function for Panic Devices, including Global Door Controls ED-501ALARM and ED-VR531. The unit allows the door latch to be retracted using a key while engaged, and requires key removal to re-engage the latch.

Constructed with a steel plate and finished in aluminum, this assembly includes the rim lock cylinder, pull trim, mounting hardware, and two keys. Pull Plate dimensions are 7-7/8" high by 3" wide, with a 1-1/4" projection.

Also available: Pull Plate Only (no lock hole)

Material & Finish
Finish Aluminum
Other
Function Night Latch (ANSI F03) - Turn key to retract door latch on exit device, release/remove key to re-engage.
Plate Material Steel
Pull Plate Height 7-7/8"
Pull Plate Width 3"
Pull Projection 1-1/4"
Mounting Holes 3/8" Diameter, 4-5/16" Center to Center, 5/16" Offset from Plate Center Line

Questions about this product? Call 954-776-5340 or send us a message below.

* Required fields
