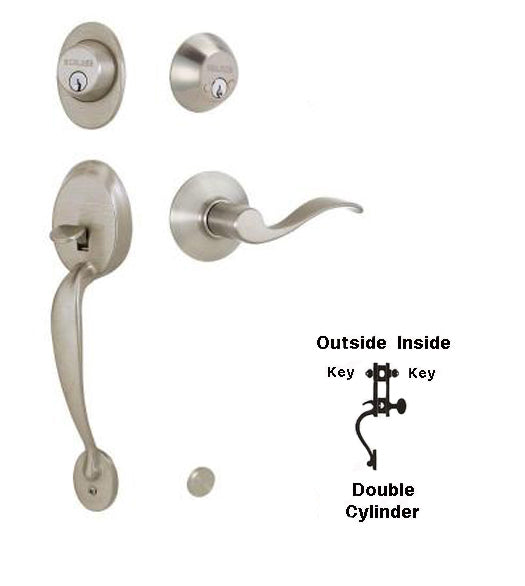

The Schlage F62PLY is an Oval Plymouth Double Cylinder Handleset, primarily engineered for high-security front door applications. Constructed from solid brass and rated ANSI Grade 1, this handleset provides robust security and durability.

The double cylinder mechanism allows the deadbolt to be key-operated from both the exterior and interior. The exterior thumbpiece operates the latch underneath the deadbolt, while the interior turnknob provides operation.

This handleset is compatible with door thicknesses ranging from 1-5/8" to 1-3/4" and offers backset options of 2-3/8" or 2-3/4". Available options include multiple finishes, Plymouth, Georgian, and Accent Trims, along with various keying configurations.

Also available matching:
Plymouth Single Cylinder Handleset
Plymouth Dummy Handleset

Dimensions & Fit
Backset will fit 2-3/8" or 2-3/4"
Door Thickness will fit 1-5/8" up to 1-3/4" packaged with extra screws to accommodate 2" doors
Other
Outside Handle Length 12-13/32"
Outside Handle Projection 2-9/32"
Outside Top Handle Plate Length 4"
Outside Top Handle Plate Width 3"
Outside Bottom Handle Plate Length 2-9/10"
Outside Bottom Handle Plate Width 1-4/5"
Outside Deadbolt Length 3-1/2"
Outside Deadbolt Width 2-1/2"
Inside Deadbolt Plate Length 2-1/2"
Inside Deadbolt Width 2-1/2"
