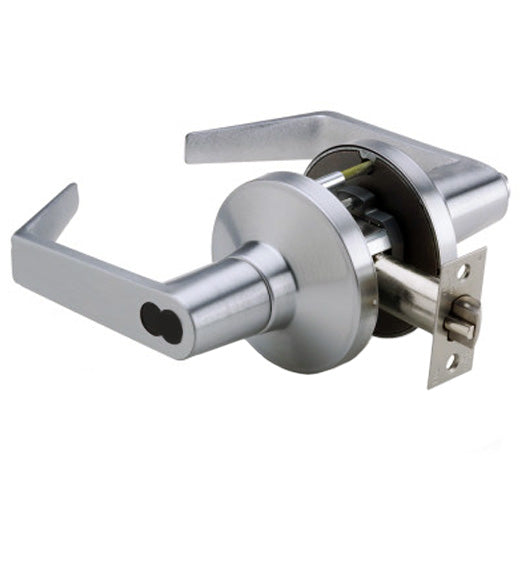

Philadelphia Grade 2 Commercial Interchangeable Core (IC) Leverset, PDQ GP Series

SKU: PDQ-GP-PHLIC
$180.99 $241.00Save $60.01/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The PDQ GP Series Philadelphia Commercial Interchangeable Core (IC) Leverset is a Grade 2 commercial lever compliant with ANSI/BHMA A156.2-1996, Series 4000. It is rated by UL/ULC for 'A' label (3 hours) positive pressure applications.

This commercial lever fits standard 161 commercial door preparation with through-door through-bolting. It is adjustable for door thicknesses ranging from 1-3/8" to 1-3/4".

Also available: Other Functions PDQ GP Series Commercial Levers

ADA Compliant Handicap Logo
Dimensions & Fit
Door Thickness Adjustable for 1-3/8" to 1-3/4" thick.
Material & Finish
Finish Satin Chrome
Other
Door Prep Fits standard 161 door prep with through-bolt mounting.
Backsets Standard 2-3/4", Optional 2-3/8"
Front 2-1/4" X 1-1/8" Beveled 1/8" on 2"
Rose Diameter 3-3/8"
Strike 4-7/8" X 1-1/4" (Standard ASA). Stainless steel.
Latchbolt 1/2" throw. Adjustable front for flat or beveled doors.
Handing Non-handed.
Trim Philadelphia Levers zinc diecast.
Interchangeable Core Small format IC less core (no lock cylinder). Compatible with Best, Falcon, Arrow 6 or 7 pin cylinders.
