−29%
Emtek
Maguire Handleset with Lewiston Knob, Yale YMGR44-LTN
$142.99
$203.00Save $60.01/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

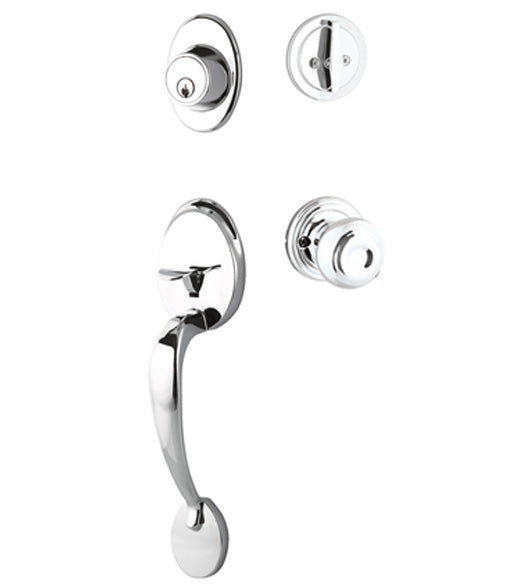

The Maguire Handleset with Lewiston Knob is a traditional, oval-shaped door hardware unit providing a classic silhouette. This single-cylinder handleset features a durable brass body and is designed for front door applications.
It accommodates standard door thicknesses ranging from 1-3/8" to 1-3/4" and supports adjustable backsets of 2-3/8" or 2-3/4". Exterior operation allows the latch to be controlled by a thumbpiece and the deadbolt by a key, while the interior knob operates the latch and the thumbturn controls the deadbolt.
Dimensions & Fit
Door Thickness
adjustable for 1-3/8" - 1-3/4"
Backset
adjustable 2-3/8" or 2-3/4"
Material & Finish
Material
Brass
Keyway
Schlage C
Keyway
Schlage C
Other
Center to Center Door Prep
5-1/2"
Exterior Deadbolt Plate Width
2-1/2"
Exterior Top Plate Width
2-7/8"
Exterior Bottom Plate Width
1-13/16"
Exterior Projection
2-7/16"
Exterior Grip Clearance
2-1/8”
Interior Deadbolt Diameter
2-1/2"
Interior Trim Diameter
2-1/2"
Interior Knob Diameter
2-1/8"
Interior Knob Projection
2-1/2"
Door Specs
2-1/8” face bore, 1” edge bore, 1” x 2-1/4” radius corner
Handing
non-handed
Questions about this product? Call 954-776-5340 or send us a message below.
