Bommer
Horizontal Floor Spring Hinge Set, Bommer 7813
$125.25
/ unit
Out of Stock — Notify me
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

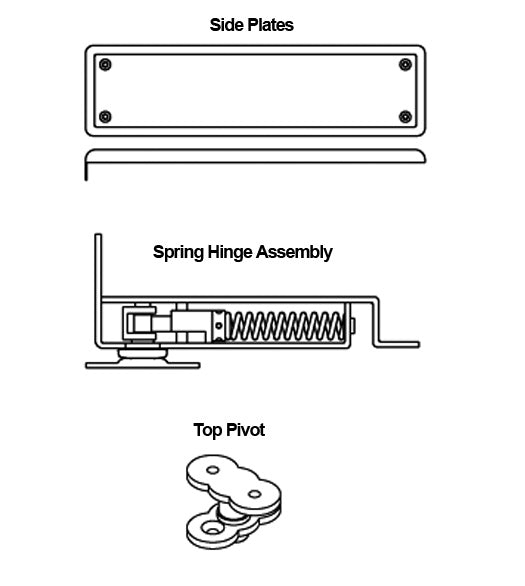

The Bommer 7813 is a horizontal floor spring hinge set designed for double action, self-closing applications, typically found on restaurant or bar doors. The set includes the top pivot, side trim plates, and back plate.
This floor spring hinge is rated for doors up to 1-3/4" thick and 90 lbs. The adjustable tension spring and included tool allow for precise control of the door's closing force. Available finish is Bright Brass, Clear Coated.
Also available: Bommer 7811 Hold Open Floor Spring Hinge and for heavier doors use Bommer 7813HD Heavy Duty Floor Spring Hinge
Dimensions & Fit
Door Thickness
1-3/8" to 1-3/4" Thick Doors
Other
Spring Hinge
9-1/4" Long
Cover Plate Length
9-3/4"
Cover Plate Height
2-5/8"
Door Weight
90 Lbs. Maximum
Door Width
36" Maximum
Questions about this product? Call 954-776-5340 or send us a message below.
