−29%
PDQ

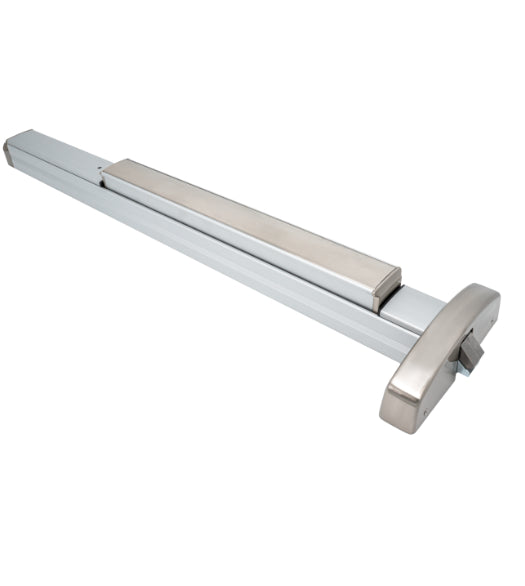

Heavy Duty Narrow Stile Rim Exit Device For 30 - 36 Inch Door, PDQ 6400R
$688.99
$983.00Save $294.01/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida
The PDQ 6400 Series is a heavy duty Grade 1 Rim Exit Device designed for commercial applications, providing a robust solution for life safety and fire code compliance. This unit is specifically suited for doors ranging from 30 to 36 inches.
The device incorporates heavy gauge wrought or stainless steel touch bar components and a cadmium plated steel chassis. Installation requires a true 2-3/4” backset, compatible with door thicknesses between 1-3/4” and 2” and door widths up to 3'0".
The unit features a stainless steel latch bolt with a 3/4" throw rim and includes a 10-year limited manufacturer's warranty.
Dimensions & Fit
Door Thickness
1-3/4"- 2"
Other
Chassis
Cadmium plated steel
Rail
Heavy gauge steel or stainless steel
Touch Pad
Heavy gauge steel or stainless steel
Latch Bolt
Stainless steel dead locking with 3/4" throw rim
Head Width
1-9/16"
Head Height
8-3/16"
Projection
3-1/8" extended, 2-1/2" depressed
Hand
Device is non-handed
Dogging
Hex key dogging standard / No dogging on fire labeled devices
Stile Width
2-1/8" minimum
Door Width
Standard for 2'6"- 3'0" door maximum
Warranty
10 year limited manufacturer's warranty
Questions about this product? Call 954-776-5340 or send us a message below.
