PDQ

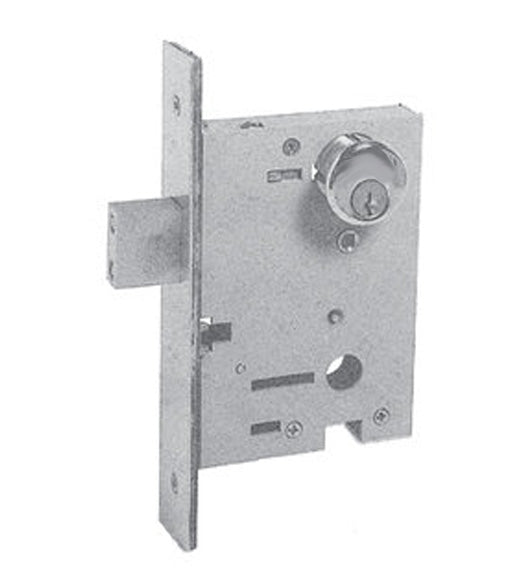

Grade 1 Mortise Deadbolt, PDQ MR-DB
$329.99
$440.00Save $110.01/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida
The PDQ MR-DB is a Grade 1 Mortise Deadbolt Lock Set, Extra heavy duty, and Windstorm Resistant. It conforms to Federal Specification FF-H-106 Type 86 and meets ANSI A156.13 Series 1000 standards.
The unit is designed for standard mortise 86 door preparation and accommodates 2-3/4" backsets. The mortise case is constructed from 13-gauge wrought steel, with the armored front available in brass or stainless steel.
Available in 630 Satin Stainless Steel finish, the lock includes a brass 6-pin cylinder. Keying options include Ordered One Lock, Keyed Different, or Keyed Alike.
Material & Finish
Finish
630 Satin Stainless Steel
Other
Mortise Case
5-7/8" x 4-1/8" x 7/8". 13-gauge heavy duty wrought steel. Zinc and clear chromate for corrosion resistance. One case size for all functions.
Armored Front
8" x 1-1/4". Brass or stainless steel. ANSI Standard A115.1. Adjustable from flat to beveled 1/8" in 2" bevel.
Deadbolt (for deadbolt functions)
9/16" x 1-1/4". 1" throw. Stainless steel.
Door Prep
Fits standard mortise 86 door prep.
Backsets
2-3/4"
Hand Case
Handed. Reversible in field Except Single Cylinder Classroom.
Front
2-1/4" X 1-1/8" Beveled 1/8" on 2".
Keyways
Schlage "C" Standard.
Cylinder
Brass 6-pin cylinder keyed to 5 pins; 1-1/8" long standard mortise lock cylinder.
Certifications
ANSI A156.13, Series 1000, Grade 1. Meets all accessibility requirements of the ADA. Conforms to Federal Specifications FF-H-106 Type 86.
Warranty
Limited lifetime warranty
