Grandeur

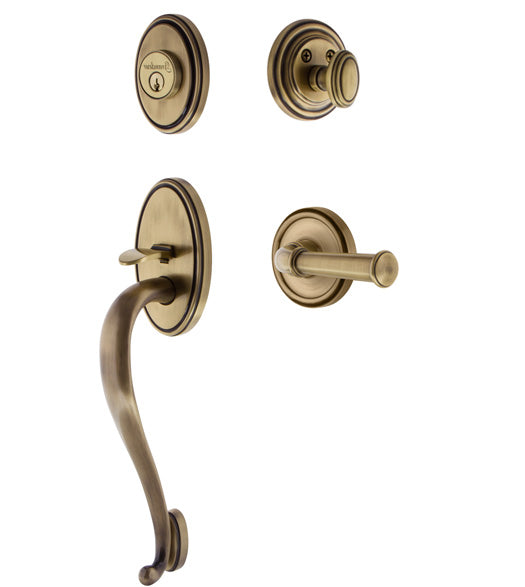

Georgetown Elegant Handleset, Grandeur GEOSGR
$652.00
$815.00Save $163.00/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida
The Grandeur Georgetown Elegant Handleset, GRA-GEOSGR, is constructed from solid forged brass, offering universal appeal for both commercial and residential environments.
This entry set accommodates doors ranging from 1-3/4" to 2-1/4" thick, fitting 2-3/8" or 2-3/4" backsets. The exterior deadbolt height measures 3.57" and the overall height is 17.25".
The handleset is available in a wide array of finishes, trims, and keying options, including single cylinder and dummy handlesets. Detailed dimensions and installation information are available in the linked specification guides.
Dimensions & Fit
Door Thickness
Adjustable 1-3/4" to 2-1/4" with optional thick door kit for doors up to 2-1/2" thick.
Backset
2-3/8" or 2-3/4"
Other
Exterior Deadbolt Height
3.57"
Exterior Deadbolt Width
2.65"
Exterior Top Height
4.87"
Exterior Top Width
2.74"
Exterior Bottom Height
2.02"
Exterior Bottom Width
1.02"
Exterior Overall Height
17.25"
Exterior Projection
3.27"
Bore Hole Distance
minimum 4-3/8" center to center.
Questions about this product? Call 954-776-5340 or send us a message below.
