Double Pocket Door Lock Set, Reguitti SDK091PV/PA
$192.50
$275.00Save $82.50/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

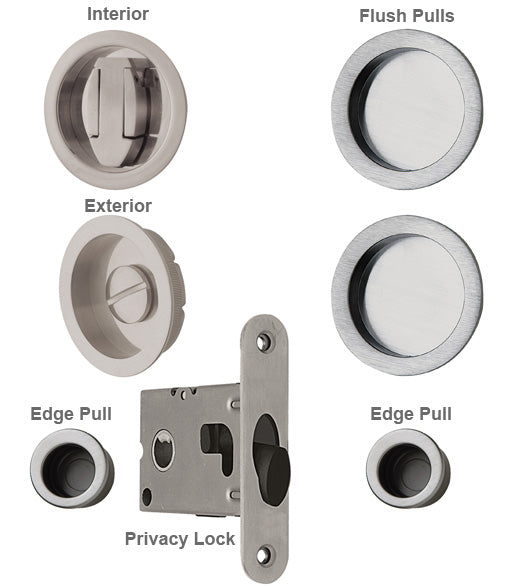

The AHI Contemporary Round Double Pocket Door Lock Set is a complete hardware package designed for double pocket doors. This set includes the privacy mortise lock body, two round flush pulls for the locking door, two non-locking flush pulls, two round edge pulls, a strike plate, and all mounting hardware.
The system accommodates double pocket doors ranging from 1-3/8" to 1-3/4" thick. The mortise lock body measures 1-11/16" high and 1/2" thick. The flush pulls are pressure mounted to the door face, while the edge pulls are pressure mounted into the door edge. Available finishes include Polished Chrome, Polished Brass, and Satin Nickel.
Other
Mortise Lock Body Height
1-11/16"
Mortise Lock Body Thickness
1/2"
Mortise Lock Body Depth
2-1/2"
Mortise Lock Faceplate Height
3-3/8"
Flush Pull Overall Diameter
2-1/4"
Flush Pull Door Cutout Diameter
1-7/8" (48 mm)
Flush Pull Overall Depth
7/16"
Flush Pull Door Cutout Depth
3/8"
Flush Pull Projection
1/16"
Interior Privacy Trim Projection
3/16"
