Continuous Hinge 83 Inch Half Surface, National Guard Products HD5400-83
$290.70
$323.00Save $32.30/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

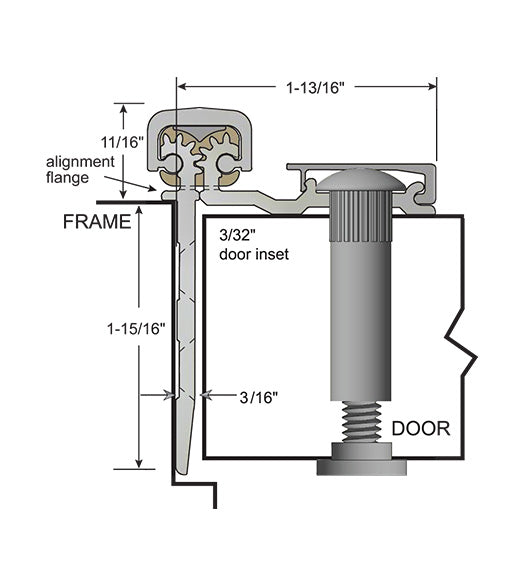

The NGP HD5400-83 is a Half Surface Continuous Gear Hinge, ideal for door retrofits, renovations, or new construction where door mortising is impractical.
This 83" hinge accommodates door thicknesses from 1-3/4" to 2-1/4". A Continuous Gear Hinge consists of two full-height, paired, and geared leafs, each supported by Teflon-infused, self-lubricating bearings.
Available in Anodized Aluminum or Dark Bronze finishes, this hinge supports heavy vertical loads up to 600 lb.
Dimensions & Fit
Door Thickness
1-3/4" to 2-1/4"
Other
Hinge Length
83"
Hinge Material
6063-T6 Aluminum
Maximum Door Height
6'-10" (83")
Hinge Type
Half Surface Continuous Gear Hinge
Maximum Load Capacity
600 lb
Door Leaf Width
1-5/8"
Door Leaf Thickness
0.125"
Frame Leaf Width
1 -15/16"
Frame Leaf Thickness
0.125"
Frame leaf
#12-24 TEK flat head MS
Door leaf
#12-24 TEK pan head MS and 1/4"-20 thru-bolts
Questions about this product? Call 954-776-5340 or send us a message below.
