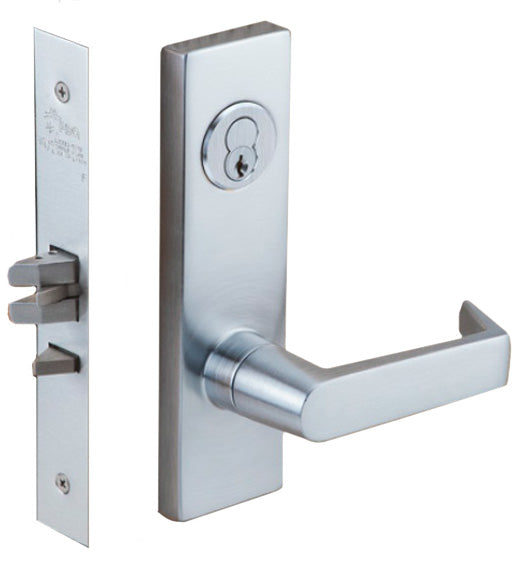

The PDQ MR-PFEF is a Grade 1 Commercial Mortise Lock Set with Escutcheon Trim, conforming to Federal Specification FF-H-106 Type 86 and ANSI A156.13-2002, Series 1000.
This extra heavy-duty lockset features a 13-gauge wrought steel mortise case (5-7/8" x 4-1/8" x 7/8") and is rated by UL/ULC for ‘A’ label (3 hour) applications. It accommodates standard mortise 86 door preparation with 2-3/4" backsets.
The system includes a brass 6-pin cylinder and Philadelphia solid zinc diecast trim, available in various keying options including One Lock or Keyed Different.
Material & Finish
Finish
Brushed Chrome
Other
Mortise Case
5-7/8" x 4-1/8" x 7/8". 13-gauge heavy duty wrought steel. Zinc and clear chromate for corrosion resistance. One case size for all functions.
Armored Front
8" x 1-1/4". Brass or stainless steel. ANSI Standard A115.1. Adjustable from flat to beveled 1/8" in 2" bevel.
Deadbolt (for deadbolt functions)
9/16" x 1-1/4". 1" throw. Stainless steel.
Guardbolt
Stainless steel. Non-handed.
Latchbolt
3/4" Throw / Investment Cast Stainless Steel /Anti-friction Standard
Stop Works
Stainless steel. Rocker type.
Door Prep
Fits standard mortise 86 door prep.
Backsets
2-3/4"
Hand Case
Handed. Reversible in field.
Front
2-1/4" X 1-1/8" Beveled 1/8" on 2".
Strike
4-7/8" x 1-1/4" x 3/32" (ASA). Stainless steel or brass.
Overall Projection
2-9/16"
Lever Length
5-1/2"
Escutcheon Width
2-1/16"
Escutcheon Height
7-5/8"
Trim
Philadelphia levers solid zinc diecast.
Keyways
Schlage "C" Standard.
Cylinder
Brass 6-pin cylinder keyed to 5 pins; 1-1/8" long standard mortise lock cylinder.
Certifications
ANSI A156.13, Series 1000, Grade 1. Meets all accessibility requirements of the ADA. Conforms to Federal Specifications FF-H-106 Type 86.
Warranty
Limited lifetime manufacturer warranty
