Weslock

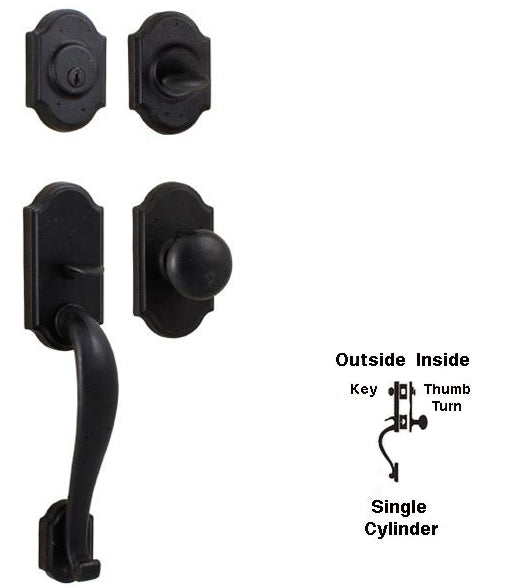

Castletown Single Cylinder Entry Handleset, Weslock 7625

SKU: WES-7625
$362.99 $453.00Save $90.01/ unit
Out of Stock — Notify me
Contractor or designer? Volume pricing + dedicated account rep available
Select Inside Trim
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The Weslock 7625 Castletown Single Cylinder Entry Handleset features a solid bronze construction and provides a classic, old-world aesthetic enhanced by beveled edges and gently curved handles. It is rated as an ANSI Grade 2 lock.

This entryset is designed for versatile installation, fitting door thicknesses from 1-3/4" to 2". An optional thick door kit accommodates doors ranging from 2" to 2-1/4".

The handleset adjusts to fit backsets of 2-3/8" or 2-3/4" and is available in Matte Black or Oil Rubbed Bronze finishes.

Also available matching:

Castletown Dummy Handleset

Dimensions & Fit
Door Thickness adjustable for 1-3/4" to 2" with optional thick door kit for doors 2" to 2-1/4"
Backset adjustable for 2-3/8" or 2-3/4" with removable faceplates.
Other
Overall Exterior Length 18-1/2"
Deadbolt Length (exterior and interior) 4"
Deadbolt Width (exterior and interior) 2-3/4"
Exterior Deadbolt Projection 3/4"
Exterior Handle Length 13-1/4"
Exterior Handle Projection 2-1/2"
Exterior Top Handle Plate Length 5"
Exterior Top Handle Plate Width 2-3/4"
Exterior Bottom Handle Plate Width 2-3/4"
Interior Deadbolt Projection 1-3/4"
Interior Plate Length 5"
Interior Plate Width 2-3/4"

Questions about this product? Call 954-776-5340 or send us a message below.
