Acorn

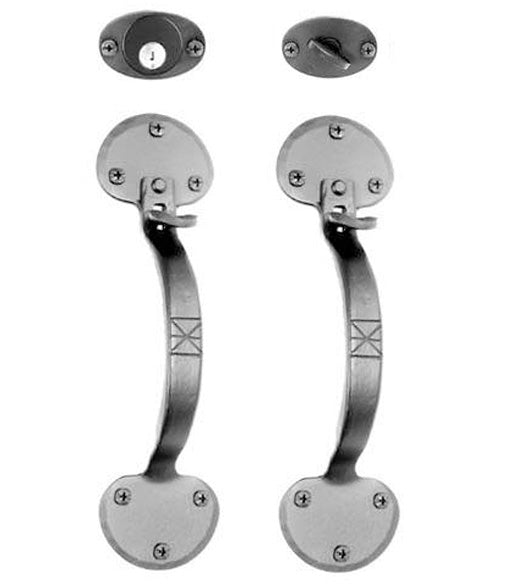

Black Iron Bean Tip Mortise Handleset, Acorn ATYBD / ATYBI
$300.60
$334.00Save $33.40/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida
The Acorn Black Iron Bean Tip Mortise Handleset provides a cast iron solution suitable for traditional door applications. This lockset is finished in Black Iron and offers robust construction for statement pieces.
Designed to fit doors between 1-3/4" and 3" thick, the handleset accommodates 2-1/2" or 2-3/4" backsets. The exterior cylinder plate measures 1-5/8" high by 2-3/8" wide.
Available in single or dummy cylinder functions, the unit utilizes a Schlage C-Keyway.
Dimensions & Fit
Door Thickness
1-3/4" Standard, Optional up to 3" thick doors
Backset
2-1/2" or 2-3/4"
Material & Finish
Finish
Black Iron
Keyway
Schlage C-Keyway
Other
Exterior Cylinder Plate Height
1-5/8"
Exterior Cylinder Plate Width
2-3/8"
Exterior and Interior Handleset Length
10-3/16”
Exterior and Interior Handleset Width
2-7/8”
Exterior and Interior Handleset Projection
1-3/4"
Stile Width
Recommend 4-1/2” with a 4-1/4” minimum.
Questions about this product? Call 954-776-5340 or send us a message below.
