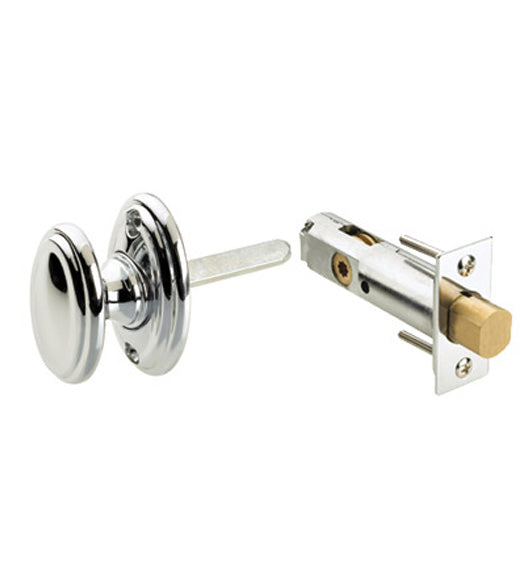

Beveled Turnpiece Mortise Privacy Bolt, Omnia 9163

SKU: OMN-9163
$108.80 $136.00Save $27.20/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The Omnia 9163 Privacy Bolt Set is a mortise privacy solution designed for bedrooms and bathrooms. This bolt provides privacy but is not intended for high-security applications, allowing retraction from the exterior via the emergency release rose in case of emergency.

The unit is engineered for doors measuring 1-3/8" to 2-1/4" thick, accommodating either 2-3/8" or 2-3/4" backsets. The complete set includes the faceplate, strike, dustbox, bolt, interior rose with turnpiece, and emergency release exterior rose.

Omnia Finish Chart
Dimensions & Fit
Door Thickness 1-3/8" - 2-1/4"
Backset either 2-3/8" or 2-3/4"
Material & Finish
Material Solid Brass
Other
Rose Height (both interior and exterior) 1-9/16"
Rose Width (both interior and exterior) 1-1/16"
Interior Projection 1-1/16"
Exterior Projection 3/8"
Faceplate Height 2-1/4"
Faceplate Width 1"
Strike Plate Height 2-3/4"
Strike Plate Width 1-1/8"
Bolt 9/16" throw solid brass bolt
Includes faceplate, strike, dustbox, bolt, interior rose with turnpiece, and emergency release exterior rose.
