Arched 7 Inch Pocket Door Keyed Entry Set, Omnia 7039/A

SKU: OMN-7039/A
$549.60 $687.00Save $137.40/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer? Volume pricing + dedicated account rep available


Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The Omnia 7039/A is a Traditional Arched Keyed Mortise Pocket Door Hardware Set designed for keyed entry security on any sliding door application.

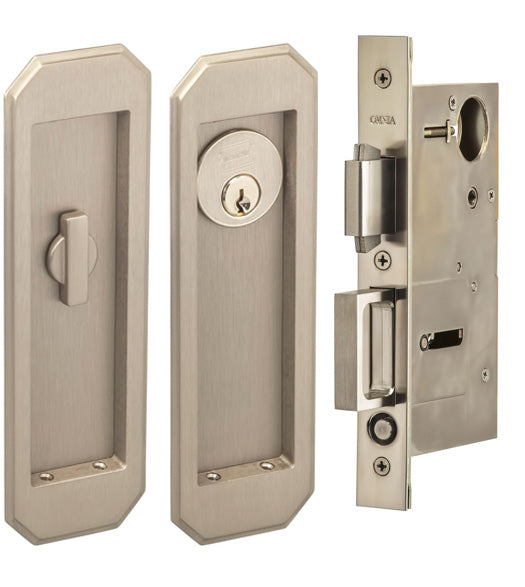

This complete set includes two flush pulls, a mortise box, mortise faceplate, strike, and mounting hardware. The door is operable from the exterior via a Schlage C Keyway and from the interior using a thumb turn. Available finishes include Satin Nickel, Oil-Rubbed Bronze, and Polished Chrome.

Also Available Matching: Dummy Set and Privacy Function

Dimensions & Fit
Backset 2-1/2"
Door Thickness 1-3/8" or 1-3/4"
Other
Plate Height 7"
Plate Width 2-9/32"
Plate Cut-Out Height 5-3/8"
Plate Cut-Out Width 2"
Plate Projection 1/8"
Overall Depth 7/16"
Mortise Box Height 6-3/4"
Mortise Box Width 3/4"
Mortise Box Face Plate Height 8"
Mortise Box Face Plate Width 1"
Latch 1/2" thick x 1-1/4" high x 1" throw
Finger Pull 1/2" thick x 2" high x 1-1/4" throw
Mortise Finger Pull is thrown by pressing the button on the mortise's face plate. It can be retracted simply by pressing it flush with the faceplate.
