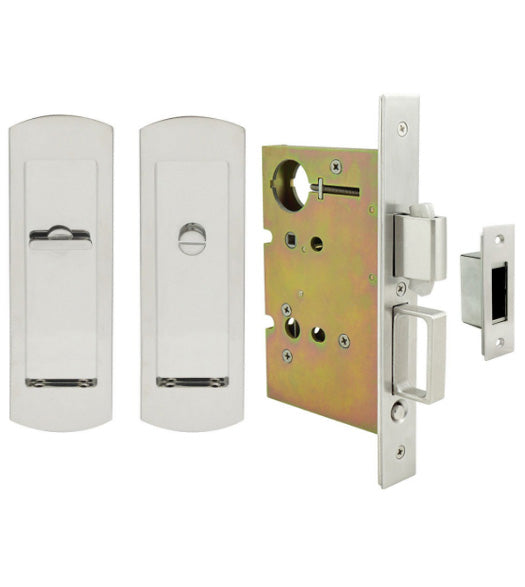

The Inox Arc Pocket Door Privacy Set is designed to secure a sliding pocket door while maintaining emergency access. This hardware provides a mortise privacy lock that allows the door to be fully secured while permitting exterior unlocking for emergency use.

Sold as a complete set for one door, the package includes two flush pulls, the mortise privacy lock, and all necessary mounting hardware. The system is compatible with door thicknesses ranging from 1-3/4" to 3" and backsets of 2-3/4", 2-1/2", or 2".

The Arc Sliding Door Trim is available in a wide array of finishes, including brass and stainless steel options, allowing selection based on the desired aesthetic and material profile.

Also Available Matching: Passage Set and Keyed Entry Function

Dimensions & Fit
Door Thickness 1-3/4", 2", 2-1/4", 2-3/4", or 3"
Material & Finish
Material Brass or Stainless
Other
Face Plate Height 7-7/8"
Face Plate Width 2-23/64"
Face Plate Projection 5/64"
Mortise Box Height 5-29/32"
Mortise Box Width 11/16"
Mortise Box Depth 3-41/64"
Mortise Box Face Plate Height 8"
Mortise Box Face Plate Width 1"
Door Backset 2-3/4", 2-1/2", or 2"
Mortise Finger Pull is thrown by pressing the button on the mortise's face plate. It can be retracted simply by pressing it flush with the faceplate.
