−19%
Don-Jo
8 Inch Slide Bolt UL Listed, Don-Jo 1580
$31.70
$39.62Save $7.92/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

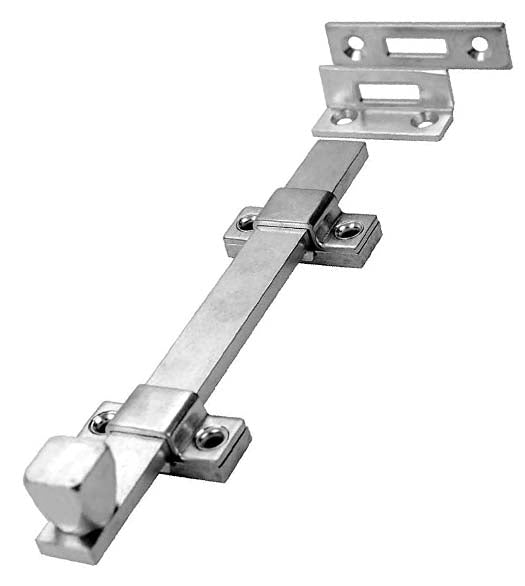

The Don-Jo 1580 is an 8-inch surface-mounted slide bolt, UL Listed and designed for fire door applications.
Constructed from steel, this bolt includes a mortise strike plate, rim angle strike plate, new guides, and mounting screws. Available in Brushed Chrome, Polished Brass, or Oil Rubbed Bronze finishes.
Detailed dimensions include an 8-inch bolt length, 3/4-inch bolt width, and 1/4-inch bolt thickness.
Also available: Longer 12" Slide Bolt
Material & Finish
Material
Steel
Other
Bolt Length
8"
Bolt Width
3/4"
Bolt Thickness
1/4"
Bolt Projection
3/4"
Max Projection at Knob
1-3/8"
Bolt Throw
1-1/8"
Guide Plate Width
2"
Mortise Strike Length
2-7/8"
Mortise Strike Width
3/4"
Rim Angle Strike Length
2"
Rim Angle Strike Width
3/4"
Questions about this product? Call 954-776-5340 or send us a message below.
