Omnia

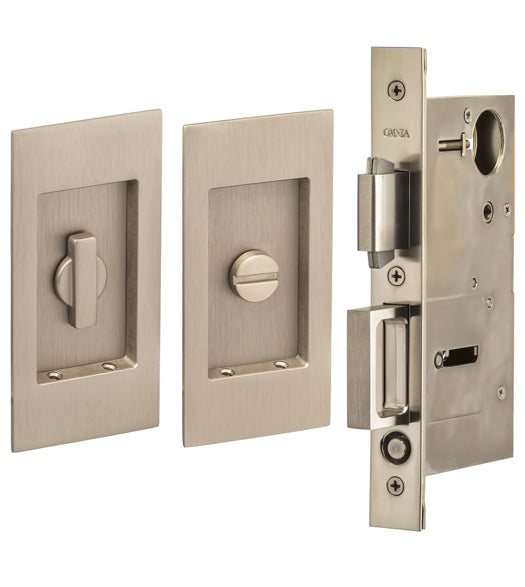

4-1/2 Inch Pocket Door Privacy Set, Omnia 7036/L
$452.80
$566.00Save $113.20/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida
The Omnia 7036/L is a 4-1/2 Inch Rectangular Privacy Mortise Pocket Door Hardware set. The unit is operated by throwing a mortise bolt via a thumbturn on the interior.
As a privacy sliding door lock, the bolt can be retracted from the exterior via an emergency release turn. This hardware offers privacy, not security.
The set includes 2 flush pulls, a privacy mortise box, and installation hardware. Various finishes, including Satin Nickel and Oil-Rubbed Bronze, are available.
Also Available Matching: Dummy Set
Dimensions & Fit
Backset
2-1/2"
Door Thickness
1-3/8" or 1-3/4"
Other
Plate Height
4-1/2"
Plate Width
2-9/32"
Plate Cut-Out Height
2-5/8"
Plate Cut-Out Width
1-1/2"
Plate Projection
3/32"
Overall Depth
3/8"
Mortise Box Height
6-3/4"
Mortise Box Width
3/4"
Mortise Box Face Plate Height
8"
Mortise Box Face Plate Width
1"
Latch
1/2" thick x 1-1/4" high x 1" throw
Finger Pull
1/2" thick x 2" high x 1-1/4" throw
Questions about this product? Call 954-776-5340 or send us a message below.
