Bommer
3-1/2 x 3-1/2 x 5/8 Radius Stainless Steel Spring Hinge, Pair, Bommer LB4392C-350
$178.64
/ unit
Out of Stock — Notify me
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

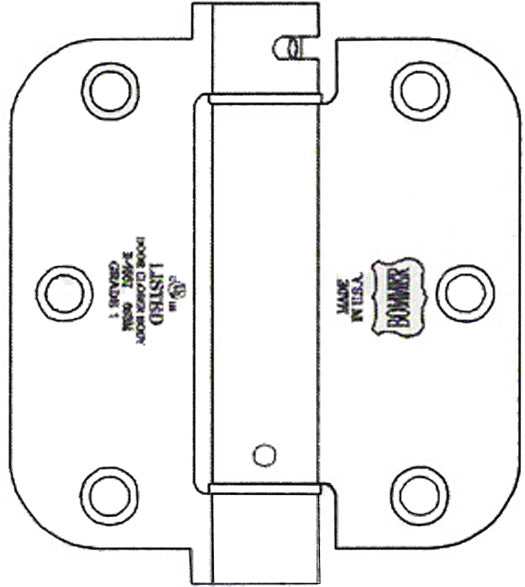

The Bommer LB4392C-350-630 is a pair of 3-1/2" x 3-1/2" x 5/8" Radius Stainless Steel Spring Hinges. These single-action hinges are tension adjustable and designed for high-cycle door applications.
Constructed from 304 Stainless Steel (Gauge .130), this unit is UL Listed (R-4667) and certified Grade 1 for fire door applications, rated for 1 million cycles. The package includes tensioning hardware, locking pins, and installation screws for wood or metal doors.
Other
Hinge Material
304 Stainless Steel
Finishes
Satin Stainless Steel
Height
3-1/2"
Width
3-1/2"
Corners
5/8" Radius
Gauge of Metal
.130 (Heavy Duty)
Number of Holes
6
Wood Screws
#10 x 3/4"
Machine Screws
#10-24 x 1/2"
