Storefront Door Mortise Lock Deadbolt Body, TH1101

SKU: GLO-TH1101
$24.83 $35.47Save $10.64/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The Global TH1101 is a commercial aluminum frame storefront door mortise lock body. It functions as a direct replacement for Adams Rite MS1850 series mortise deadbolts and is designed for aluminum or steel framed entry doors.

This unit accepts standard Mortise Thumbturns and Mortise Lock Cylinders with Adams Rite cams. Security is provided by a huge five-ply laminated steel bolt and a concealed hardened steel pin.

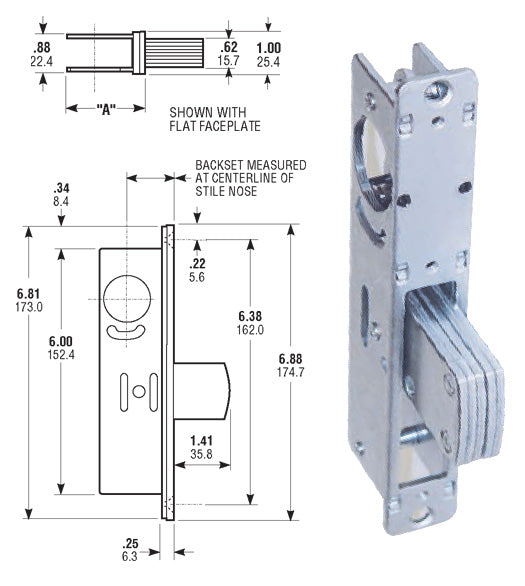

Dimensions & Fit
Backset Optional 31/32", 1-1/8" or 1-1/2"
Other
Face Plate Width - 1", Length - 6-7/8"
Case Dimensions Width - 7/8", Length - 6", Depth (specific to backset) - 1.63" through 1.78"
Deadbolt Width - 5/8", Throw - 1-3/8"

Questions about this product? Call 954-776-5340 or send us a message below.
