PDQ

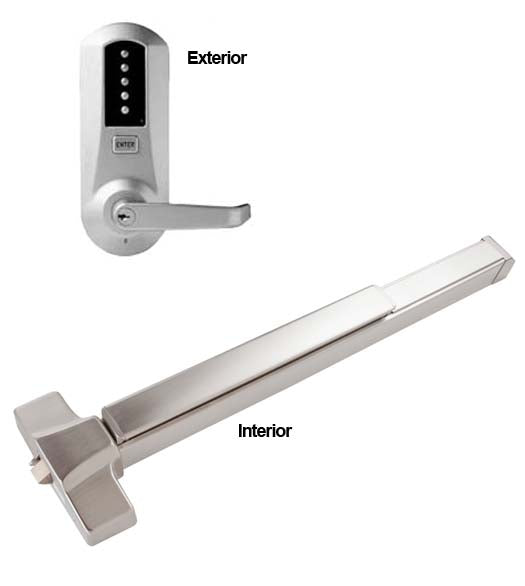

Key Pad Lock Rim Exit Device, PDQ 6300R-KABA-5010

SKU: PDQ-6300R-KABA-5010
$1,391.99 $1,855.00Save $463.01/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The PDQ 6300R-KABA-5010 is a heavy-duty Key Pad Lock Rim Exit Device designed for medium and high traffic commercial, hospitality, and institutional applications.

This exit device is compliant with ANSI/BHMA Grade 1, A156.3 2001, and U.L./U.L.C. listed for "Panic" hardware. It accommodates doors ranging from 30" to 36" wide and 1-3/4" to 2-1/4" thick.

ADA Compliant Handicap
Dimensions & Fit
Door Thickness 1-3/4" - 2-1/4"
Material & Finish
Finish Satin Stainless Steel
Other
Chassis Cadmium plated steel
Rail Extruded aluminum
Touch Pad Stainless steel, 18" wide
Latch Bolt Stainless steel dead locking with 3/4" throw
Projection 3-1/8” projection / 1-5/8” projection when dogged
Hand Device is non-handed
Dogging Hex key dogging
Application Rim (8'0" tall door standard) / Covers 161 door prep
Stile Width 5" minimum
Door Width Standard for 2'6" to 3'0" door (30" - 36" wide door)
Certifications U.L./U.L.C. listed for “Panic” hardware. ANSI/BHMA Certified Grade 1, A156.3 2001 Exit Devices.
Warranty Ten (10) year limited warranty mechanical components

Questions about this product? Call 954-776-5340 or send us a message below.
