Heavy Duty Polished Brass Vertical Rod Exit Device for 30 - 36 Inch Door, PDQ 6300V605

SKU: PDQ-6300V605
$1,044.40 $1,492.00Save $447.60/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer? Volume pricing + dedicated account rep available
Select Exterior Trim
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

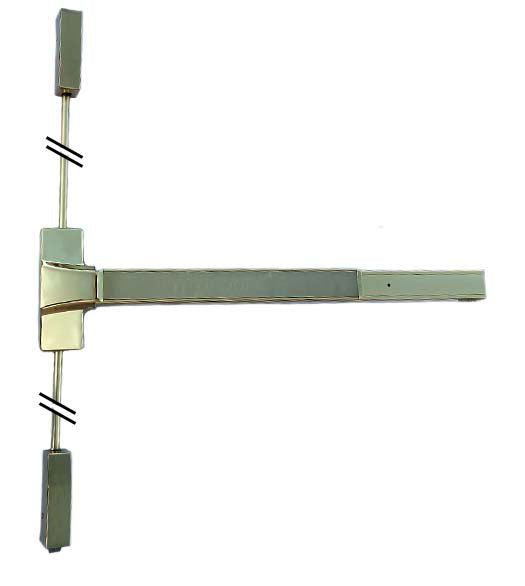

The PDQ 6300V605 is a Polished Brass Heavy Duty Vertical Rod Exit Device, designed for high-traffic commercial, hospitality, and institutional applications. This device maintains its finish and structural integrity in demanding environments.

Certified ANSI/BHMA Grade 1, this device is listed for UL 305 Panic and UL 10C Fire Exit Hardware up to 3 hours. It is suitable for doors ranging from 30" to 36" wide and up to 7' high, accommodating thicknesses from 1-3/4" to 2".

ADA Compliant Handicap
Dimensions & Fit
Door Thickness 1-3/4"-2"
Material & Finish
Finish Polished Brass
Other
Rail Extruded aluminum
Top Latch Bolt Stainless Steel 3/4" Toggle
Bottom Latch Bolt 5/8" Travel Drop Bolt
Hand Device is non-handed
Dogging Hex key dogging standard, cylinder dogging available
Application Surface Vertical Rod (7'0" tall door standard)
Stile Width 3-1/2" minimum
Door Width Standard 3'0" door maximum
Door Height Standard Up to 7' High Door.
Certifications Listed for UL 305 Panic and UL 10C Fire Exit Hardware up to 3 hours. ANSI/BHMA Certified Grade 1, A156.3 2001 Exit Devices. Meets requirements of the Buy American Act. ADA compliant and ICC/ANSI 117.1 for accessible and usable buildings. Compliant with FL #40297 +50/-50 psf 8080 18ga pair.
Warranty Ten (10) year limited manufacture warranty mechanical components
