Round Stainless Steel Privacy Pocket Door Mortise Lock, Omnia 3910-US32D

SKU: OMN-3910-US32D
$138.40 $173.00Save $34.60/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

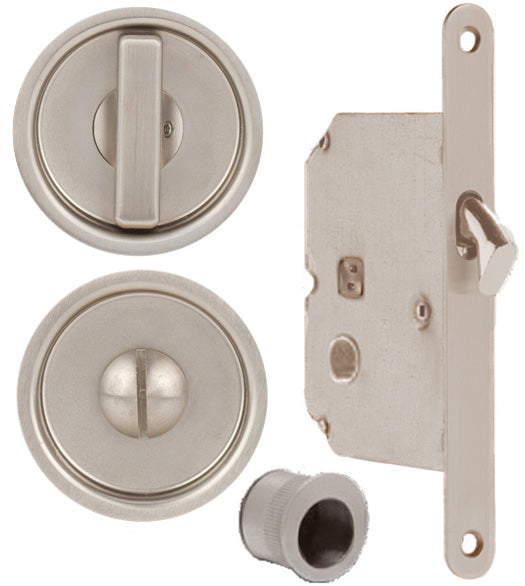

The Omnia 3910-US32D is a round stainless steel privacy pocket door mortise lock, designed for modern residential applications such as bedrooms and bathrooms. This lock accommodates doors ranging from 1-3/8" to 1-3/4" thick and requires at least 1/8 inch clearance.

The unit features a solid stainless steel construction with a brushed finish. The finger edge pull pressure mounts into the door's edge, while the round flush pulls mount into the door's face, allowing for a clean, screw-less contemporary appearance when sliding the door into the pocket. Installation instructions are available via the provided PDF.

Also Available: Round Passage Pocket Door Set and Round Double Pocket Door Set

Dimensions & Fit
Backset 2"
Door Thickness 1-3/8" or 1-3/4"
Material & Finish
Material .050" Thick Solid Stainless Steel
Finish Brushed Stainless Steel
Other
Trim Diameter 2-3/16"
Projection 3/32"
Mortise Lockbody Length 3-15/16"
Mortise Lockbody Depth 2-3/4"
Mortise Faceplate Length 6-5/16"
Mortise Faceplate Width 5/8"
Edge Pull Diameter 1-3/16"
Edge Pull Depth 1-19/32"

Questions about this product? Call 954-776-5340 or send us a message below.
