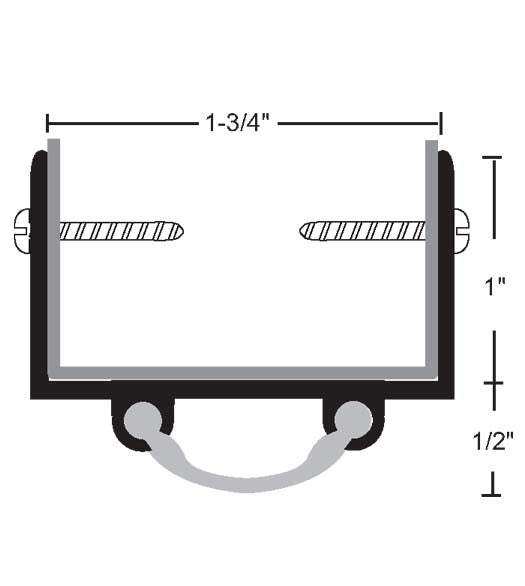

The NGP 6V-36 is a vinyl door shoe designed to close and seal the bottom gap on an under-cut door. This 36-inch shoe is constructed from T5 aluminum alloy and is specified for use with 1-3/4" thick doors.
The unit features a Gray Vinyl Seal on the bottom and is compliant with CAN/ULC-S104, ANSI/UL10B, NFPA 80 (up to 3 Hr. for Hollow Metal fire doors), and NFPA 252 (up to 90 minutes for Wood fire doors). Optional finishes include Aluminum and Dark Bronze.
Dimensions & Fit
Door Thickness
1-3/4" Thick Door
Material & Finish
Material
T5 aluminum alloy
Finish
Optional Aluminum or Dark Bronze
Other
Length
36"
Total Height
1-1/2"
Bottom Seal Height
1/2"
Vinyl Seal
Gray
Installation Screws
#6 x 3/4" Stainless Steel SMS
