KABA
Simplex Pushbutton Keypad Entry Lever Lock with Key Override, KABA 5021
$693.60
$867.00Save $173.40/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

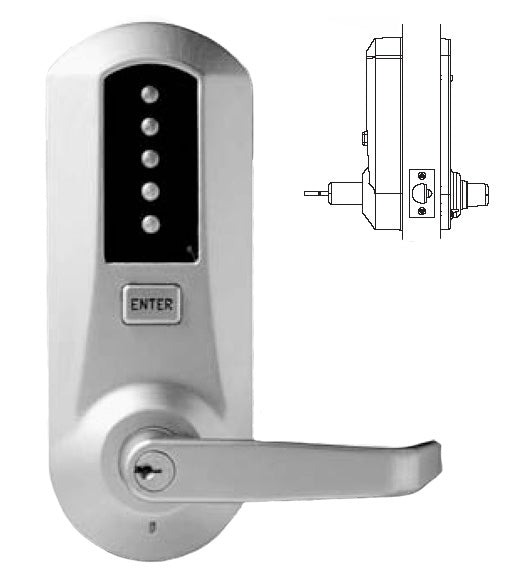

The KABA Simplex 5021 is a heavy-duty entry lever lock featuring a mechanical pushbutton keypad and key override, designed for high-traffic, security-sensitive environments.
This lock operates with a 2-3/4" backset and is designed for doors ranging from 1-3/8" to 2-1/4" thick. It features cast, ADA compliant levers and a vandal-resistant, anodized aluminum keypad.
The unit includes a standard Schlage "C" Keyway removable core and provides a three-hour UL/ULC fire rating when used with "A" labeled doors.
Dimensions & Fit
Door Thickness
1-3/8" to 2-1/4"
Backset
2-3/4"
Material & Finish
Finish
Satin Chrome
Other
Construction
Extra heavy duty cylinder lock housing with cast front housing and cast ADA Compliant Levers. Stainless steel cylinderical drive components.
Minimum Stile
5"
Installation
Easily installs on wood or metal doors with standard ASA 161 door preparation. 4 through bolt holes. 1" diameter cross bore for latch.
Latch
1/2" throw with floating front.
Control
Includes DF59 keys and screwdriver for combination change.
Key Override
Standard with Schlage "C" Keyway removable core. Optional small format Interchangeable Core I/C (Less Core) - Best or Schlage.
Handing
Non-handed, field reversible.
Numeric Keypad
Vandal resistant, mechanical 5 button plus Enter Button keypad, anodized aluminum.
Fire Rating
Three (3) hour UL/ULC fire rating for "A" labeled doors.
Environmental
Highly weather resistant; for exterior or interior use.
Warranty
Three (3) Years.
