−20%
KABA

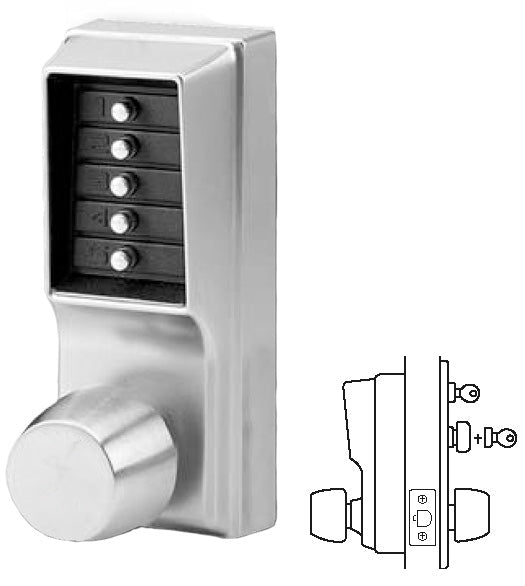

Simplex Keypad Entry Lock with Passage Feature, KABA 1031
$609.60
$762.00Save $152.40/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida
The KABA Simplex 1031 is a heavy-duty Keypad Entry Lock designed for high-security and institutional environments. The passage feature allows unrestricted door entry when activated by the interior key or thumbturn, disengaging the exterior keypad.
This lockset is constructed with a cast front housing and unified trim, accommodating door thicknesses ranging from 1-3/8" to 2-1/4". It features a mechanical, vandal-resistant 5-button keypad and includes a 3-hour UL/ULC fire rating for "A" labeled doors.
Dimensions & Fit
Door Thickness
1-3/8" to 2-1/4"
Backset
2-3/4"
Material & Finish
Finish
US26D Satin Chrome
Other
Construction
Heavy duty cylinder lock housing with cast front housing. Unified trim plate with solid cast door knobs.
Minimum Stile
5"
Installation
Easily installs on wood or metal doors with standard ASA 161 door preparation. 1" diameter for combination change, 1/4" for mounting lock, 1" diameter cross bore for latch.
Latch
1/2" throw with floating front.
Passage Feature
Allows access without using the lock entry code. Activated when required with the inside key or thumbturn.
Handing
Non-handed, field reversible.
Numeric Keypad
Vandal resistant, mechanical 5 button keypad, anodized aluminum.
Fire Rating
Three (3) hour UL/ULC fire rating for "A" labeled doors.
Environmental
Highly weather resistant; for exterior or interior use.
Warranty
Three (3) Years.
Questions about this product? Call 954-776-5340 or send us a message below.
