KABA

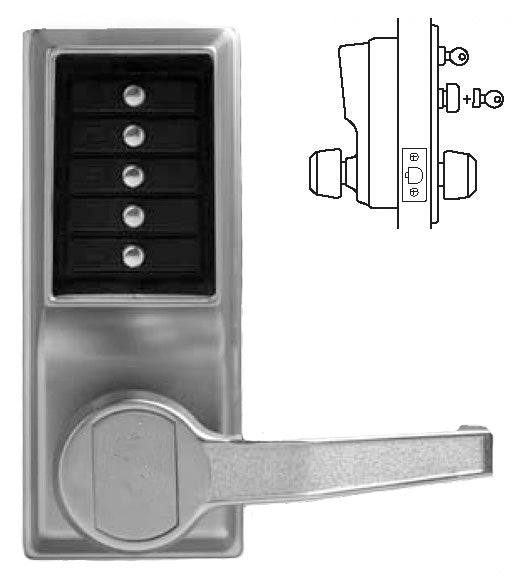

Simplex Keypad Entry Lever Lock with Passage Feature, KABA L1031
$722.40
$903.00Save $180.60/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida
The KABA Simplex L1031 is a Heavy Duty Keypad Entry Lever Lock designed for high-traffic, security-sensitive areas including commercial, institutional, and military applications. This unit features a vandal-resistant, mechanical 5-button keypad for entry function, combined with a passage feature allowing access via the interior key or thumbturn without needing the exterior code.
The lockset is constructed with a cast front housing and cylinder lock body, providing rugged durability. It is ADA compliant, fits doors ranging from 1-3/8" to 2-1/4" thick, and includes a three-hour UL/ULC fire rating for 'A' labeled doors.
Dimensions & Fit
Door Thickness
1-3/8" to 2-1/4"
Backset
2-3/4"
Material & Finish
Finish
US26D Satin Chrome
Other
Construction
Heavy duty cylinder lock housing with cast front housing. Unified trim plate with fixed cast ADA Compliant Levers.
Minimum Stile
5"
Installation
Easily installs on wood or metal doors with standard ASA 161 door preparation. 1" diameter for combination change, 1/4" for mounting lock, 1" diameter cross bore for latch.
Latch
1/2" throw with floating front.
Passage Feature
Allows access without using the lock entry code. Activated when required with the inside key or thumbturn.
Handing
Handed
Numeric Keypad
Vandal resistant, mechanical 5 button keypad, anodized aluminum.
Fire Rating
Three (3) hour UL/ULC fire rating for "A" labeled doors.
Environmental
Highly weather resistant; for exterior or interior use.
Warranty
One (1) Year.
Questions about this product? Call 954-776-5340 or send us a message below.
