KABA

Simplex Keypad Entry Lever Lock with Key Override, KABA L1021

SKU: KABA-L1021
$738.40 $923.00Save $184.60/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer? Volume pricing + dedicated account rep available


Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

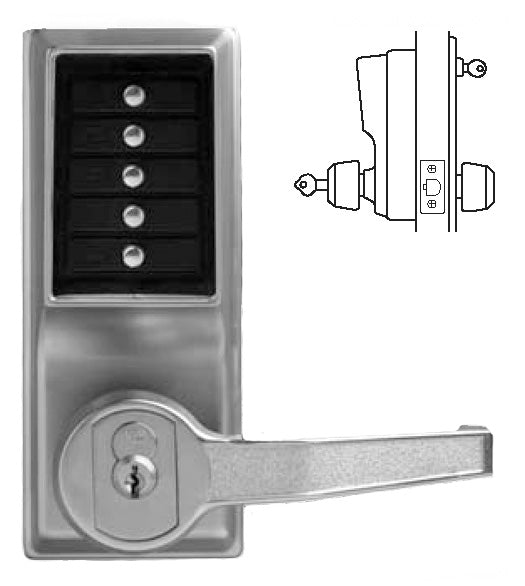

The KABA Simplex L1021 is a Heavy Duty Keypad Entry Lever Lock with Key Override, designed for controlling access to high-security, high-traffic areas in commercial and institutional buildings.

This unit features a strong, rugged construction including a cast cylinder lock housing and cast front housing, compliant with ADA requirements and meeting Paragraph 36A of the U.S. Department of Defense Industrial Security Manual.

The lock accommodates door thicknesses ranging from 1-3/8" to 2-1/4" and includes options for various finishes, including Satin Chrome, Antique Brass, and Bright Brass.

KABA Simplex L1021 dimensions ADA Compliant Handicap Logo Made in the USA
Dimensions & Fit
Door Thickness 1-3/8" to 2-1/4"
Backset 2-3/4"
Other
Construction Heavy duty cylinder lock housing with cast front housing. Unified trim plate with fixed cast ADA Compliant Levers.
Minimum Stile 5"
Installation Easily installs on wood or metal doors with standard ASA 161 door preparation. 1" diameter for combination change, 1/4" for mounting lock, 1" diameter cross bore for latch.
Latch 1/2" throw with floating front.
Handing Handed
Numeric Keypad Vandal resistant, mechanical 5 button keypad, anodized aluminum.
Fire Rating Three (3) hour UL/ULC fire rating for "A" labeled doors.
Environmental Highly weather resistant; for exterior or interior use.
Warranty One (1) Year.
