Simplex Keypad Deadlatch With Key Override and Latch Holdback, KABA 9380000
$260.00
$325.00Save $65.00/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

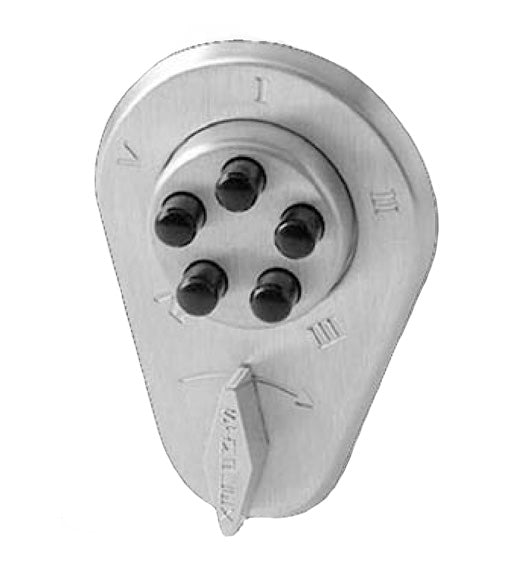

The KABA Simplex 9380000 is a mechanical pushbutton keypad deadlatch featuring key override and latch holdback. This system is designed for high-security applications requiring controlled access and automatic re-locking upon closure.
This rim-type deadlatch is suited for doors ranging from 1-3/4" to 2-1/8" thick. Installation is surface-mounted on the interior side of the door, requiring a through bore of 1-5/8" for the barrel.
The unit features a 5/8" throw auto-locking deadlatch and a vandal-resistant, mechanical 5-button keypad. The unit offers options in Satin Chrome and Satin Brass finishes.
Dimensions & Fit
Door Thickness
1-3/4" to 2-1/8".
Backset
2-1/2" for inswing doors; 2-9/16" for outswing doors.
Other
Construction
All metal cast rear housing. Force-proof clutch protected thumbturn. Brass exterior trim plate
Installation
Rim type deadlatch surface mounted on inside of door. Through bore 1-5/8" diameter for barrel; 3/4" diameter for thumbturn; 7/8" diameter for Key override cylinder.. Face plate covers mounting holes.
Latch
5/8" throw auto locking deadlatch.
Strike
Includes strike plate for outswing doors and cast box strike for inswing doors.
Handing
Non-handed, field reversible.
Numeric Keypad
Vandal resistant, mechanical 5 button keypad with Roman numerals.
Warranty
One (1) Year.
