KABA

Simplex Keypad Deadbolt for 1-3/8 Inch Door Thickness, KABA 9020000

SKU: KABA-9020000
$194.40 $243.00Save $48.60/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

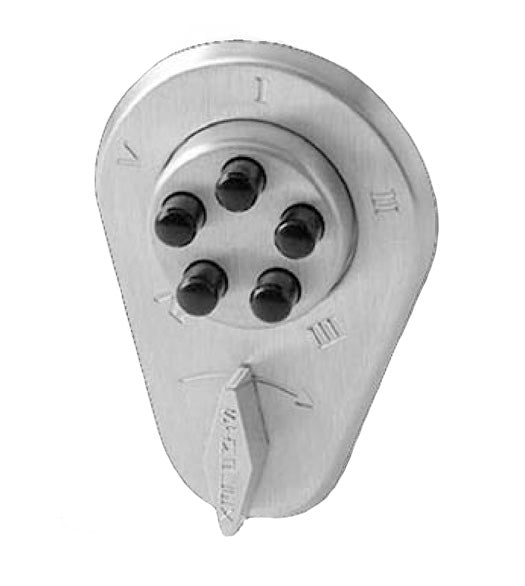

The KABA Simplex 9020000 is a mechanical pushbutton keypad deadbolt lock set, ideal for high-traffic environments such as conference rooms or office entry doors. This unit allows users to unlock the door using a single access combination code from the exterior, while providing free egress via an interior thumbturn.

The lock features a 1" throw deadbolt latch and is designed for doors up to 1-3/8" thick. It includes a strike plate for outswing doors and a cast box strike for inswing doors, ensuring secure and functional installation.

Constructed with an all metal cast rear housing and brass exterior trim plate, this model is easy to install, program, and maintain. Available finishes include Satin Chrome and Satin Brass.

KABA Simplex 902 dimensions Made in the USA
Dimensions & Fit
Backset 2-1/2" for inswing doors; 2-9/16" for outswing doors.
Other
Construction All metal cast rear housing. Force-proof clutch protected thumbturn. Brass exterior trim plate
Installation Rim type deadbolt surface mounted on inside of door. Through bore 1-5/8" diameter for barrel; 3/4" diameter for thumbturn. Face plate covers mounting holes.
Latch 1" deadbolt.
Strike Includes strike plate for outswing doors and cast box strike for inswing doors.
Handing Non-handed, field reversible.
Numeric Keypad Vandal resistant, mechanical 5 button keypad with Roman numerals.
Warranty One (1) Year.

Questions about this product? Call 954-776-5340 or send us a message below.
