KABA

Simplex Keypad Deadbolt for 1-3/4 Inch Door Thickness, KABA 9040000

SKU: KABA-9040000
$194.40 $243.00Save $48.60/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer? Volume pricing + dedicated account rep available


Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

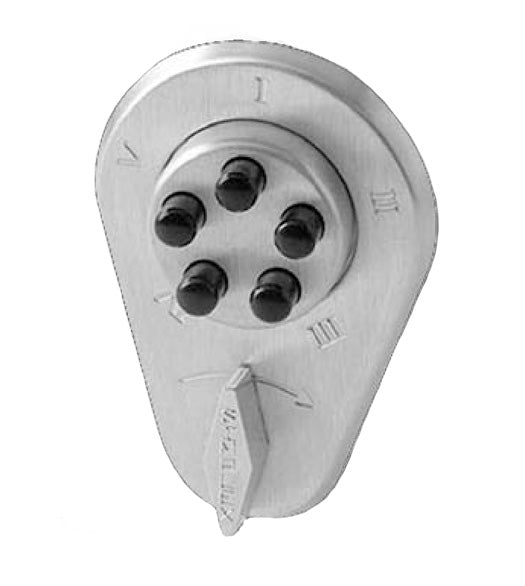

The KABA Simplex 9040000 is a mechanical pushbutton keypad deadbolt lock set, ideal for controlled access in high-turnover environments such as offices or conference rooms.

Designed for doors ranging from 1-3/4" to 2-1/8" in thickness, the unit features a 1" throw deadbolt latch. Exterior entry is gained via a single access combination code, while interior thumbturn allows for free egress.

The lock is supported by an all-metal cast rear housing and available in Satin Chrome or Satin Brass exterior trim finishes.

KABA Simplex 904 dimensions Made in the USA
Dimensions & Fit
Backset 2-1/2" for inswing doors; 2-9/16" for outswing doors.
Other
Construction All metal cast rear housing. Force-proof clutch protected thumbturn. Brass exterior trim plate
Installation Rim type deadbolt surface mounted on inside of door. Through bore 1-5/8" diameter for barrel; 3/4" diameter for thumbturn. Face plate covers mounting holes.
Latch 1" deadbolt.
Strike Includes strike plate for outswing doors and cast box strike for inswing doors.
Handing Non-handed, field reversible.
Numeric Keypad Vandal resistant, mechanical 5 button keypad with Roman numerals.
Warranty One (1) Year.
