Inox

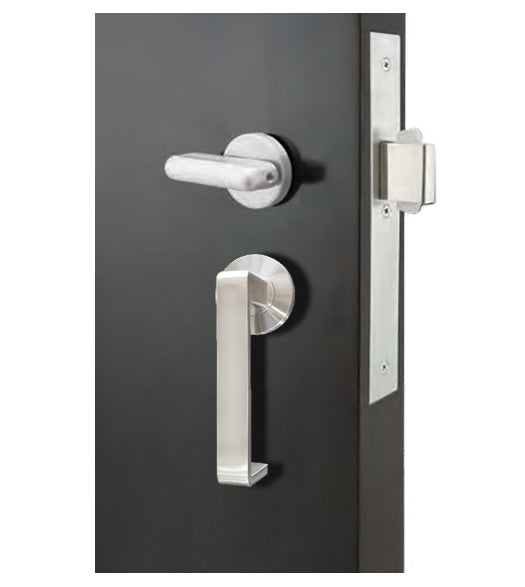

ADA Compliant Osaka Sliding Door Privacy Set, INOX PD9540XGT346
$558.99
$698.00Save $139.01/ unit
In Stock - Estimated Shipping 2-4 Business Days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida
The Inox Osaka Sliding Door Privacy Set provides an ADA compliant solution for sliding pocket door privacy applications. This set features a thumbturn that throws and retracts the bolt, meeting the no grasp, no pinch requirements of the ADA Standard.
The latch operates from the interior with a single action for easy egress. The exterior provides a ridged lever and an emergency coin release. Note that privacy locks are designed for privacy, not security.
Dimensions & Fit
Door Thickness
1-3/4"
Interior Dimensions
Thumbturn Length
2-3/4"
Thumbturn Width
5/8"
Material & Finish
Material
Stainless Steel
Other
Lever Length
5"
Lever Projection
1-3/4"
Lever Return to Door Length
1-3/4"
Lever Rose Diameter
2-1/16"
Cylinder Rose Diameter
1-13/16"
Mortise Box Height
5-29/32"
Mortise Box Width
11/16"
Mortise Box Depth
3-41/64"
Mortise Box Face Plate Height
8"
Mortise Box Face Plate Width
1"
Door Backset
2-3/4" or 2-1/2"
Minimum Pocket Door Opening
40"
Mortise Finger Pull
is thrown by pressing the button on the mortise's face plate. It can be retracted simply by pressing it flush with the faceplate.
