20 x 60 Lite Kit with Tempered Glass, NGP L-FRA100-20x60-Tempered
$695.70
$773.00Save $77.30/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

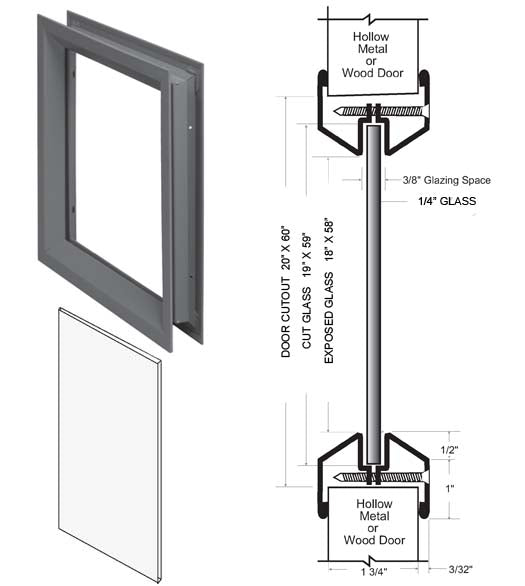

The NGP 20 x 60 Low Profile Lite Kit is designed for 20" x 60" door cutouts, utilizing 1/4" thick tempered glass and glazing tape.
This kit includes mitered and welded corners with reinforcing clips, constructed to fit doors up to 1-3/4" thick. The glass dimensions are 19" x 59".
The tempered glass complies with IBC requirements for door use and is Impact safety-rated, meeting ANSI Z97.1 Class A and CPSC 16CFR 1201 (CAT I and II).
Dimensions & Fit
Door Thickness
1-3/4" Thick Door
Other
Door Cut Out Width
20"
Door Cut Out Height
60"
Tempered Glass Width
19"
Tempered Glass Height
59"
Tempered Glass Thickness
1/4"
Frame Projection Off Door
3/32"
Installation Screws
#8 x 1-5/8 Phillips head SMS
Questions about this product? Call 954-776-5340 or send us a message below.
