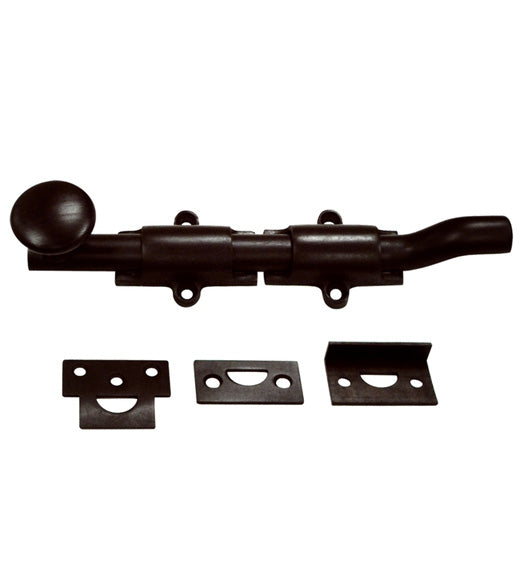

The Deltana FPG610B is a 6-inch Offset Surface Bolt constructed from solid brass and finished in oil rubbed bronze.

This heavy-duty bolt can be installed horizontally or vertically on the surface of almost any door. Unique ball bearing guides maintain tension and prevent scratching of the barrel during operation.

Package includes the surface bolt, mortise strike plate, universal strike plate, angle strike plate, two bolt guides, and matching oval phillips head finish brass wood screws.

Also Available:
10" Offset Surface Bolt - 18" Offset Surface Bolt - 26" Offset Surface Bolt - 42" Offset Surface Bolt

Deltana FPG6 6
Material & Finish
Material Solid Brass
Finish Oil Rubbed Bronze
Other
Bolt Length 6"
Bolt Width 5/8" Diameter Half Round Rod
Bolt Offset 5/8"
Guide Width 1-1/2"
Guide Projection 9/16"
Knob Projection 1-3/8"
Knob Diameter 1-1/4"
Bolt Throw 1-1/16"
Rod Resistance 109 lbs.
Wood Screws oval phillips head #6 x 1-1/4"
