Don-Jo

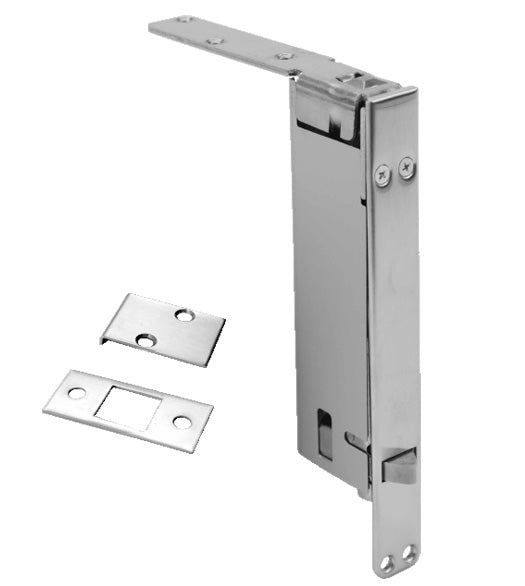

Automatic Flush Bolts for Wood Door, Don-Jo 1562

SKU: DJO-1562
$188.83 $236.04Save $47.21/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The Don-Jo 1562 Automatic Flush Bolt is a self-latching assembly designed for fire-rated wood doors, compliant with UL 10C and UBC 7-2-1997 standards. It accommodates standard ANSI preparation for wood doors and is ADA compliant, requiring only 5 lbs of operational force.

This unit is sold in pairs, including both top and bottom flush door bolts, along with strike plates, guide plates, and installation screws. Available finishes include Polished Brass, Oil Rubbed Bronze, and Brushed Chrome. See the manufacturer's PDF for detailed dimensions.

Don-Jo 1562 Wood Door Automatic Flush Bolts size
Material & Finish
Material Brass
Other
Face Plate Width 1"
Face Plate Height 8-1/2"
Frame Strike Plate Width 15/16"
Frame Strike Plate Length 2-1/4"
Guide Plate Width 1"
Guide Plate Length 6-1/16"
Bolt Diameter 1/2"
Bolt Throw 3/4"
Bolt Vertical Adjustment 3/4"

Questions about this product? Call 954-776-5340 or send us a message below.

* Required fields

Automatic Flush Bolts for Wood Door, Don-Jo 1562 $188.83
