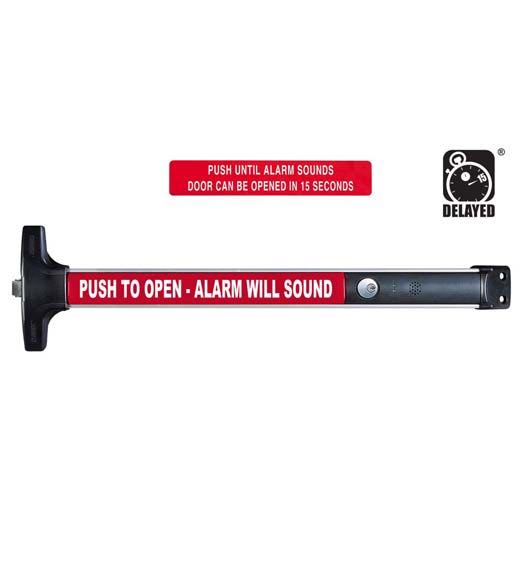

Delayed Egress Panic Device, DETEX FV40EELD-36

SKU: DET-FV40EE-36
$2,516.00 $3,145.00Save $629.00/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer? Volume pricing + dedicated account rep available
Select Outside Trim
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The DETEX FV40EE-36 is a 36" Delayed Egress Panic Device, engineered to provide a 100 dB alarm exit function for primary or secondary door security. It incorporates a 15-second delay mechanism activated upon exit attempt, allowing time for security response.

This device is suitable for wood, fiberglass, and hollow metal fire-rated doors. Per life safety requirements, the EE must be connected to a fire alarm input to provide a system override during a fire emergency. The unit is ANSI/BHMA Grade 1 certified and complies with U.L. 10C and UBC 7-2 (1997) standards.

DETEX Delayed Egress Rim Device specifications
Dimensions & Fit
Door Thickness 1-3/4" - 2-1/4"
Other
Rail Heavy duty ribbed extruded aluminum
Touch Pad 18-1/8" wide
Latch Bolt Stainless steel dead locking with 3/4" throw
Projection 3-1/4” projection / 2-1/2” projection when depressed
Hand Device is non-handed
Stile Width 4-1/4" minimum
Door Width Standard for 3'0" door (36" wide door)
Certifications U.L./U.L.C. listed for “Panic”, “Fire Exit hardware” labeled for up to 3 hour for 4’0” x 10’0” maximum single and pairs / Complies with U.L. 10C and UBC 7.2 (1997). ANSI/BHMA Certified Grade 1, A156.3 2001 Exit Devices.
Manufacturer's Warranty Ten (10) year limited warranty mechanical components / Three (3) year limited electrical components
Certifications U.L./U.L.C. listed for “Panic”, “Fire Exit hardware” labeled for up to 3 hour for 4’0” x 10’0” maximum single and pairs / Complies with U.L. 10C and UBC 7.2 (1997). ANSI/BHMA Certified Grade 1, A156.3 2001 Exit Devices.
Manufacturer's Warranty Ten (10) year limited warranty mechanical components / Three (3) year limited electrical components
