Omnia
Modern Square Deadbolt, Omnia SQRDB
$199.20
$249.00Save $49.80/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

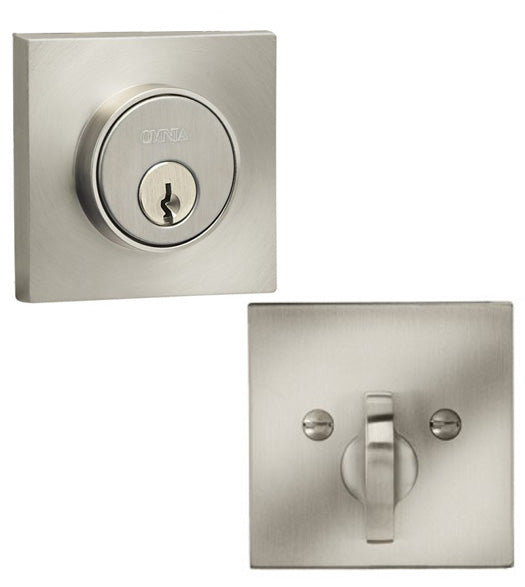

The Omnia SQRDB Modern Square Deadbolt is a single cylinder auxiliary deadbolt lock, measuring 2-5/8" square. It accommodates door thicknesses from 1-3/8" to 1-3/4", with optional backset compatibility at 2-3/8" or 2-3/4".
Operation requires a key from the exterior and a thumb turn on the interior. The unit features a 1" throw deadbolt with a hardened steel core and includes a reinforced door frame strike requiring 3" screws for extra security.
Available in seven finishes, this modern deadbolt features a 5 pin keyway, compatible with Schlage C Keyway covers 2-1/8" bore hole.
Dimensions & Fit
Backset
Optional 2-3/8" or 2-3/4"
Door Thickness
Optional 1-3/8" or 1-3/4"
Other
Length
2-5/8" Square
Exterior Projection
5/8"
Interior Projection
1-3/8"
Strike Plate Width
1-1/8"
Strike Plate Length
2-3/4"
