PDQ

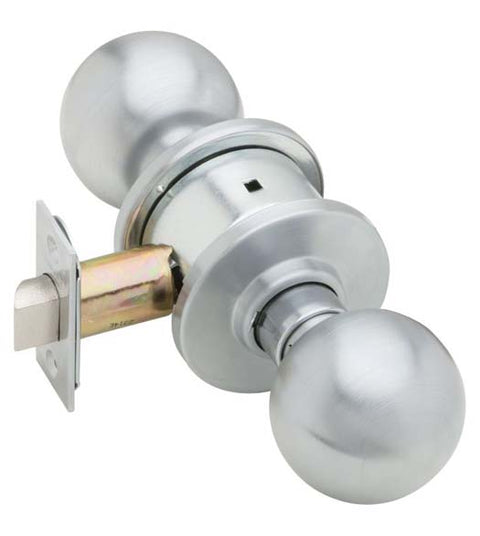

Commercial Door Knobs, Grade 2, PDQ SV Series

SKU: PDQ-SV
$42.99 $57.00Save $14.01/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The PDQ SV Series Grade 2 Commercial Door Knobs are compliant with ANSI A156.2, Series 4000. This series offers a wide selection of functions, including Single Dummy, Passage, and Privacy configurations.

Rated by UL/ULC for A label (3 hours) and less, these knobs fit standard 161 door preparations and accommodate door thicknesses ranging from 1-3/8" to 1-3/4". Backset options include 2-3/4", 2-3/8", and 5".

Available in various finishes and trims, the knob features a brass 6-pin cylinder keyed to Schlage "C" Standard.

Dimensions & Fit
Door Thickness Adjustable for 1-3/8" to 1-3/4" thick.
Other
Door Prop Fits standard 161 door prep.
Backsets 2-3/4", 2-3/8", 5".
Case Steel, yellow chromate plate.
Front 2-1/4" X 1-1/8" or 2-1/4" x 1" Stainless steel or wrought bronze.
Strike 4-7/8" X 1-1/4" (Standard ASA). Stainless steel, or wrought bronze.
Latchbolt 1/2" throw. Adjustable front for flat or beveled doors.
Handing Non-handed.
Trim Ball knob. Stainless steel or wrought brass.
Rose Diameter 3"
Keyways Schlage "C" Standard.
Cylinder Brass 6-pin cylinder keyed to 5-pins.

Questions about this product? Call 954-776-5340 or send us a message below.
