PDQ

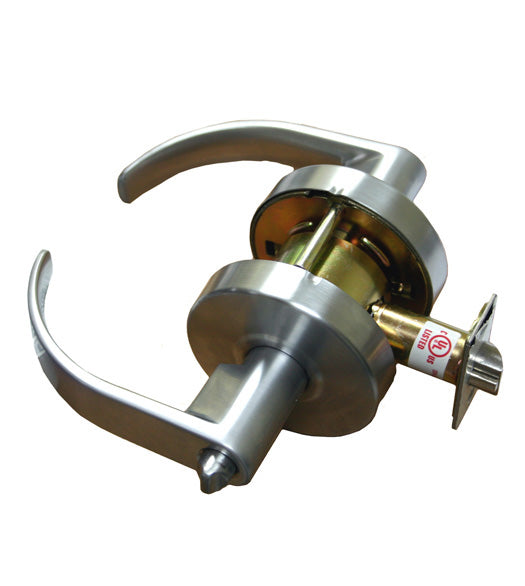

Commercial Door Boston Levers, Heavy Duty Grade 2, PDQ GP Series
The PDQ GP Series provides heavy-duty, Grade 2 commercial door levers, manufactured to meet the rigorous standards of ANSI/BHMA A156.2-1996. These levers are designed for high-traffic commercial applications requiring robust performance and reliability.
Solid cast and ADA compliant, these levers feature a wide adjustment range accommodating door thicknesses from 1-3/8" to 1-3/4". They are UL/ULC listed for fire ratings (A label, 3 hours) and are suitable for doors up to 4'0" x 8'0".
Available in multiple finishes, the PDQ GP Series is built to withstand demanding environments and is assembled in the USA.
Available Functions: for PDQ GP Series Heavy Duty Commercial Levers
- Single Dummy: For use as a pull or to match trim, one (1) side.
- Double Dummy: For use as a pull or to match trim, both (2) sides.
- Communicating: Latch bolt operated by inside lever. Blank plate outside.
- Passage (Hall or Closet)(ANSI F75): Latchbolt operated by lever from either side at all times. For doors that don't need locking.
- Privacy (Bedroom or Bathroom)(ANSI F76): Latchbolt operated by lever from either side or emergency release in outside lever. Outside locked by push button on inside lever. Outside lever unlocked by emergency release in outside lever, rotating inside lever or closing door.
- Keyed Entry (ANSI F109): Outside lever locked by push/turn button inside. When outside lever is locked by push button inside - key from outside or rotating inside lever unlocks outside lever. When outside lever is locked by pushing and turning the button inside - key from outside or rotating inside lever retracts the latch but does not unlock outside lever.
- Classroom (ANSI F84): Outside lever locked and unlocked by key. Inside lever always unlocked.
- Storeroom (ANSI F86): Outside lever fixed. Entry by key only. Inside lever always free (unlocked).
- Exit Twin Communicating: Inside lever locked or unlocked with key. Latch bolt operated by inside lever. Blank plate outside. Requires minimum clearance of 1-1/2" between doors.
- Office Entry (ANSI F82): Outside lever locked and unlocked by key. Push button locking inside. Turning inside lever unlocks outside.
