Surface Mount Gravity Pivot Hinge with Hold Open, PBB B7512H
$59.99
$88.00Save $28.01/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

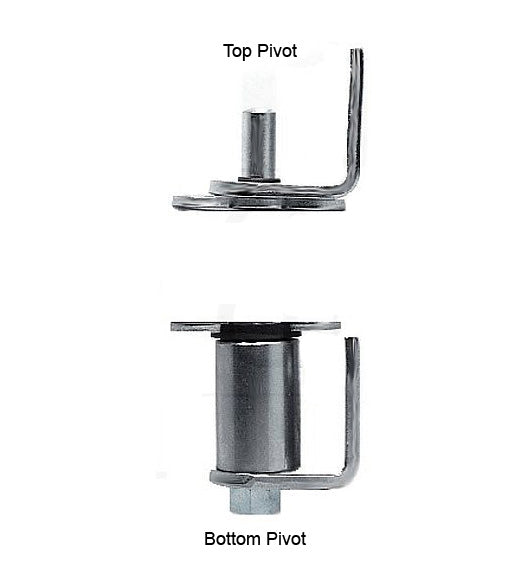

The PBB B7512H is a surface mount Gravity Pivot Hinge with Hold Open, designed as a direct replacement for the Bommer 7512-H Gravity Door Pivot Hinge.
Constructed from cast steel and finished in corrosion resistant silver zinc, this pivot hinge accommodates doors up to 30 inches wide and 50 lbs in weight. The hold open feature keeps the door stable when opened at least 90 degrees.
The hinge is sold as a complete set for one door, including the pivot, jamb bracket, top pivot assembly, and mounting hardware. Dimensions and installation instructions are available via the linked PDFs.
Material & Finish
Finish
Silver Zinc
Other
Maximum Door Width
30"
Maximum Door Thickness
For Louvered Doors 7/8" to 1-5/8" thick
Maximum Door Weight
50 lbs.
Flat Door Bracket
For doors not less than 7/8" thick
Flat Jamb Bracket
1-1/4" Wide
Questions about this product? Call 954-776-5340 or send us a message below.
