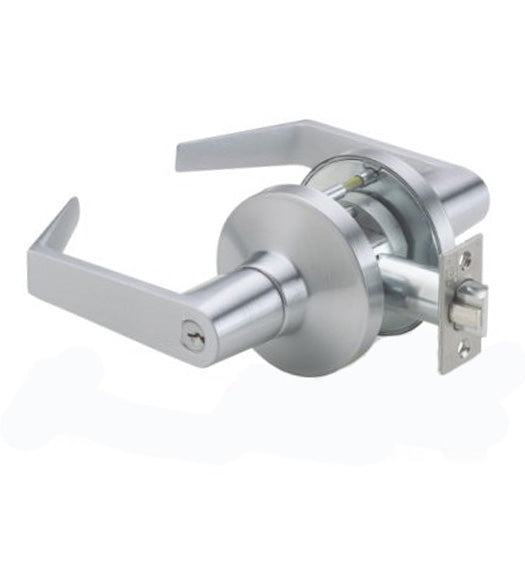

Grade 1 Commercial Door Levers, PDQ GT Series
$263.99
$352.00Save $88.01/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida
The PDQ GT Series Grade 1 Commercial Door Levers are heavy-duty, solid cast hardware designed for commercial applications. These levers meet ANSI/BHMA A156.2-1996, Series 4000, Grade 1 standards and are ADA compliant.
The levers are constructed with a heavy-duty zinc die-cast body and include a chromated cold rolled steel mechanism. They are fully adjustable for door thicknesses ranging from 1-3/4" to 2-1/4".
Available in multiple finishes, the PDQ GT Series offers a wide selection of functions, including store door function (double cylinder) and Schlage "C" Standard keyways.
Dimensions & Fit
Door Thickness
Adjustable for 1-3/4" to 2-1/4" thick doors.
Other
Door Prep
Fits standard 161 door prep.
Backsets
2-3/4"
Case
Heavy duty zinc die-cast, investment cast and chromated cold rolled steel mechanism. Billet steel spindles.
Front
2-1/4" X 1-1/8" Beveled 1/8" on 2".
Strike
4-7/8" X 1-1/4" (Standard ASA). Stainless steel, or wrought bronze.
Rose Diameter
3-3/8"
Lever Projection
3"
Lever Length
5-1/2"
Latchbolt
9/16" throw. Adjustable front for flat or beveled doors.
Handing
Non-handed.
Trim
Philadelphia levers solid zinc diecast.
Keyways
Schlage "C" Standard.
Cylinder
Brass 6-pin cylinder keyed to 5-pins.
Warranty
25 Years manufacturer's warranty
Questions about this product? Call 954-776-5340 or send us a message below.
