Baldwin

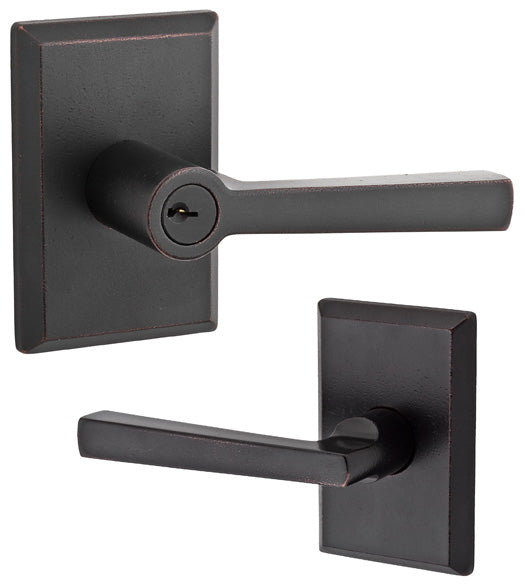

Taper Lever with Rectangular Rose, Baldwin TAP-RSR

SKU: BAL-TAP-RSR
$101.60 $127.00Save $25.40/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer? Volume pricing + dedicated account rep available


Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The Baldwin TAP-RSR Taper Lever with Rectangular Rose is a door hardware assembly designed for modern applications. It accommodates door thicknesses ranging from 1-3/8" to 2-1/2" and features adjustable backset options of 2-3/8" or 2-3/4".

This lever supports keyed entry, passage, privacy, and dummy functions. The assembly includes a 1/2" latch bolt and features a Baldwin 5-pin tumbler C keyway, tested to exceed ANSI/BHMA Grade 2 Security.

Available in Dark Bronze or White Bronze finishes, the TAP-RSR is built with a 2-1/8" cross bore and 1" edge bore.

Baldwin Reserve Finish Options
Dimensions & Fit
Door Thickness 1-3/8" - 2" standard with optional thick door kit for 2" - 2-1/2".
Backset Adjustable for 2-3/4" or 2-3/8"
Other
Lever Length 4-1/4"
Projection 2-7/16"
Keyed Entry Projection 2-1/4"
Rose Width 2-5/8"
Rose Length 4"
Latchbolt 1/2"
