Baldwin

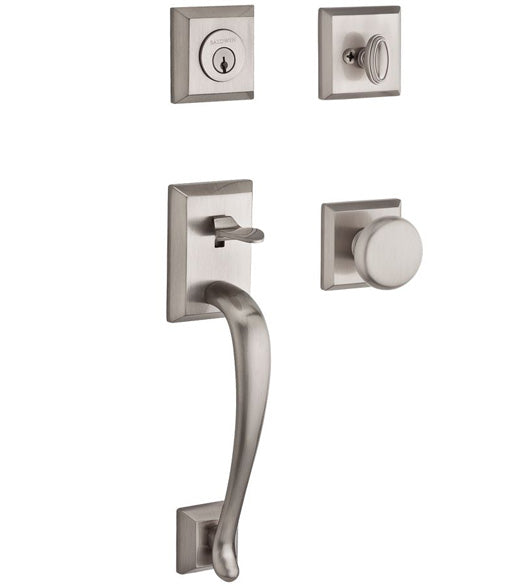

Napa Handleset with Matching Square Interior Trim, Baldwin NAP-TSR

SKU: BAL-NAP-TSR
$430.40 $538.00Save $107.60/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer? Volume pricing + dedicated account rep available
Select Interior Trim


Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The Baldwin Napa Handleset, BAL-NAP-TSR, is a traditional front door entrance set featuring a matching square rose interior trim.

This handleset is available in single cylinder, double cylinder, or dummy function. It fits pre-drilled doors ranging from 1-3/8" to 2-1/2" thick and accommodates both 2-3/8" and 2-3/4" backsets via an adjustable latch.

Dimensions & Fit
Backset Adjustable for 2-3/8" or 2-3/4"
Other
Exterior Deadbolt Width 2-11/16" square
Interior Deadbolt Width 2-5/8" square
Single Cylinder Interior Deadbolt Projection 1-7/16"
Double Cylinder Interior Deadbolt Projection 3/4"
Exterior Handleset Length (without deadbolt) 11-1/2"
Exterior Handleset Length center to center (without deadbolt) 8-13/32"
Exterior Grip Projection 2-8/9"
Interior Trim Rose Width 2-19/32" square
Door Thickness Standard 1-3/4" - 2"
Door Thickness Optional 1-3/8" - 1-3/4" or 2" - 2-1/2"
