Baldwin

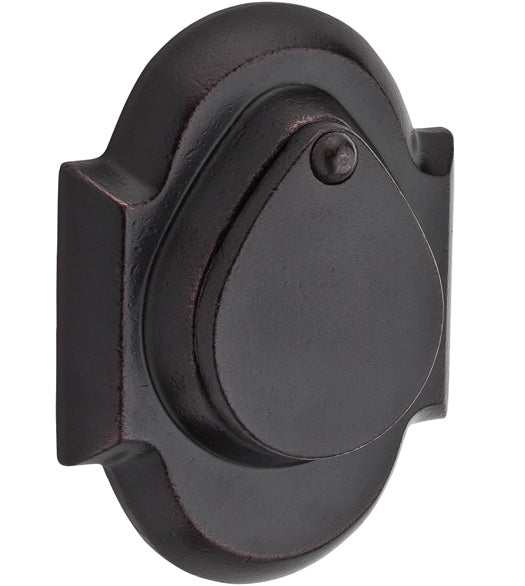

Rustic Arched Covered Deadbolt, Baldwin RAD
$131.20
$164.00Save $32.80/ unit
In Stock — Estimated Shipping 1–2 business days
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida
The Baldwin RAD Rustic Arched Covered Deadbolt is constructed from solid forged brass and features a covered cylinder for an elegant profile. This traditional deadbolt is tested to exceed ANSI/BHMA Grade 2 security standards.
It is designed to fit most pre-drilled doors, accommodating backsets of 2-3/4" or 2-3/8". The unit supports door thicknesses ranging from 1-3/4" to 2-1/2" with an optional thick door kit available for 2".
Available in Dark Bronze or White Bronze finishes, the unit includes a 25 year finish warranty and a lifetime mechanical warranty.
Dimensions & Fit
Door Thickness
1-3/4" - 2" standard with optional thick door kit for 2" - 2-1/2".
Backset
Adjustable for 2-3/4" or 2-3/8"
Other
Exterior Width
2-11/16"
Exterior Length
3-5/8"
Exterior Projection
1-1/16"
Interior Width
2-11/16"
Interior Length
3-7/16"
Interior Projection, Single Cylinder
1-7/16"
Interior Projection, Double Cylinder
1-1/16"
Questions about this product? Call 954-776-5340 or send us a message below.
