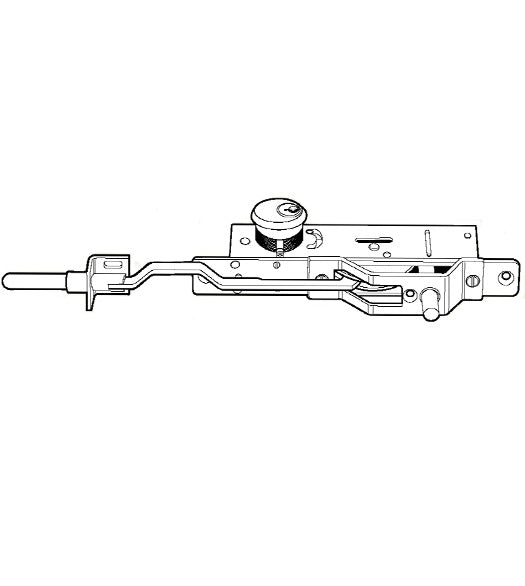

Dual Locking Bottom Rail Deadbolt, Adams Rite MS1861-02

SKU: ADA-MS1861-02
$193.60 $242.00Save $48.40/ unit
In Stock - Estimated Shipping 3-5 Business Days
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The Adams Rite MS1861-02 is a Dual Locking Bottom Rail Deadbolt designed for the bottom rail of storefront and glass doors. It provides a two-point locking mechanism when installed into the threshold, suitable for door applications where a standard vertical lock is impractical or unavailable.

Rated ANSI Grade 1, this deadbolt accepts standard 1-5/32 inch diameter Mortise Thumbturns and Mortise Lock Cylinders. Installation requires the cylinder centerline to be positioned 5-3/4" from the door nose, with the cylinder centered 1-7/8" above the door's bottom edge.

Dimensions & Fit
Backset requires placement of cylinder centerline 5-3/4" from nose of door. Cylinder is centered 1-7/8" above bottom edge of door.
Material & Finish
Finish Zinc Plated Steel
Other
Case Dimensions Width - 1", Length - 6", Depth - 1-13/16”
Vertical Latchbolt Diameter - 3/8", Throw - 13/16"
Horizontal Latchbolt Diameter - 3/8", Throw - 1-1/8"
