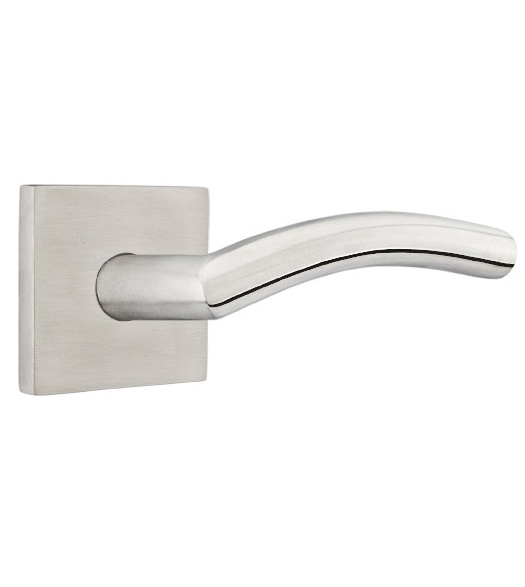

The curved Dresden Stainless Steel Lever with Square Rose is a wonderfully modern take the stainless steel door hardware. Its chicness is derived from the sleek shape of both lever and rose. The Stainless Steel Dresden Lever with Square Rosette has a brushed stainless steel finish. It is available in dummy, passage, and privacy functions. It will fit doors with 2-3/8 inch or 2-3/4 inch backsets that are 1-3/8 inches to 2-3/4 inches thick.

Features of the Dresden Door Leverset with Square Rosette:

• Fits standard door cut outs (2-1/8" pre-drilled doors).
• Lever is surface mounted (rosette screws to the door's face).
• Solid stainless steel lever and trim rose.
• Sold as complete set.
• Easy to install.

Specifications of the Dresden Lever with Modern Square Rose:

• Material: Stainless Steel
• Finish: Brushed Stainless Steel
• Lever Length: 5-3/8"
• Lever Projection: 2-5/8"
• Clearance: 2"
• Rose Square: 2-1/2"
• Door Thickness: 1-3/8 - 2-3/4"
• Backset: 2-3/8" or 2-3/4"

Available Functions:

• Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

Levers are Handed. Handing Guide

Select Function - Important Ordering Guide S30003DD: Double Dummy S10003DD: Passage (Hall or Closet) S20003DD: Privacy (Bedroom or Bathroom)   Select Door Thickness  1-3/8 - 2" Door Thickness 2" - 2-1/2" Door Thickness 2-1/2" - 2-3/4" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Handing - Important Ordering Guide RH: Right Handing LH: Left Handing
