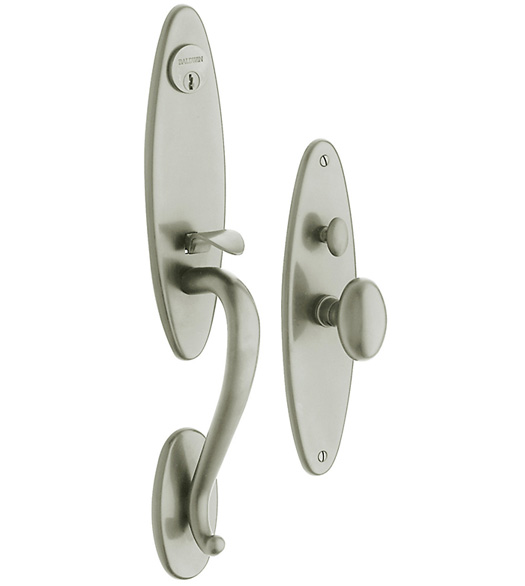

The 6573 Springfield Mortise Door Entrance Set is available as either a single cylinder or a dummy set. Made by Baldwin, this traditional handleset is fashioned out of solid brass and is backed by a limited lifetime warranty on the workmanship, materials, operation, and finish. It is available in many beautiful finishes, all of which accentuate the classic allure of the oval shape. It will fit 1-3/8" or 1-3/4" door thicknesses and with backsets of 2-1/2" or 2-3/4".

Mortise locks have been, and still are, the established norm for Europe and much of the rest of the world. In the early 1960’s Baldwin brought residential mortise locks to America. They ‘founded’ the residential mortise industry and continue to be the leader – so much so that their competitors have bought Baldwin locks for their own homes.

Also Available: Matching Baldwin 5025 Egg Knobset

Features of the Traditional 6573 Springfield Door Entrance Handle:

• Solid forged brass for maximum strength and durability.
• Heavy duty steel mortise lock body for a lifetime of trouble-free operation.
• Mortise locks have adjustable forged brass lock fronts, protected by armored scalp fronts for ultimate strength and protection against tampering.
• Forged brass and steel mechanical.
• Locks and strikes fit standard ANSI A115.1 preparation .
• Reinforced steel security strike with three inch screws.
• Anti friction latch bolt with 3/4” throw.
• 1” throw deadbolt has two hardened steel inserts for maximum protection and security.
• 7mm hub broached on the diamond
• Certified by Underwriters Laboratories (UL) for use on fire doors up to three-hour rating.
• Lifetime Limited Warranty on workmanship, materials, and operation.

Specifications of the Estates Collection Springfield Handleset:

• Interior Trim: 5025 Knob
• Exterior Overall Length: 16-1/2"
• Exterior Top Plate Length: 10"
• Exterior Top Plate Width: 3"
• Exterior Bottom Plate Length: 4-1/2"
• Exterior Bottom Plate Width: 2-1/4"
• Exterior Grip Length: 3-5/16" center to center
• Overall Exterior Projection: 3"
• Exterior Plate Thickness: 5/16"
• Interior Plate Length: 10"
• Interior Plate Width: 3"
• Interior Plate Thickness: 5/16"
• Interior Knob Length: 2-1/2"
• Interior Knob Width: 1-1/2"
• Overall Interior Projection: 2-9/16"
• Knob Hub to Turn Piece Length: 2.25"
• Knob Hub to Cylinder Length: 3.437"
• Door Thickness: 1-3/4" or 1-3/8"
• Backset: 2-1/2" or 2-3/4"
• Springfield Handleset Specification Sheet (PDF)
• Mortise Box Specification Sheet (PDF)

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
• Double Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a key unlocks the deadbolt and a knob/lever operates the latch.

Select Function - Important Ordering Guide FD: Full Dummy ENTR: Single Cylinder Entry Add  $569.60 DBLC: Double Cylinder Entry Add  $669.60   Select Finish  056: PVD Satin Nickel 055: PVD Polished Nickel 102: Oil Rubbed Bronze 112: Venetian Bronze 190: Satin Black 260: Polished Chrome 003: PVD Polished Brass 044: PVD Satin Brass   Select Backset - Important Ordering Guide 2-1/2" Backset 2-3/4" Backset - 1-3/4" or thicker doors only   Select Door Handing & Door Swing - Important Ordering Guide Right Hand Door, Out-Swing Right Hand Door, In-Swing Left Hand Door, Out-Swing Left Hand Door, In-Swing   Select Door Thickness  1-3/4" Door Thickness 1-3/8" Door Thickness   Keying - Important Ordering Guide Non Keyed (dummy set) I only ordered one Keyed Different Keyed Alike Add  $5.50
